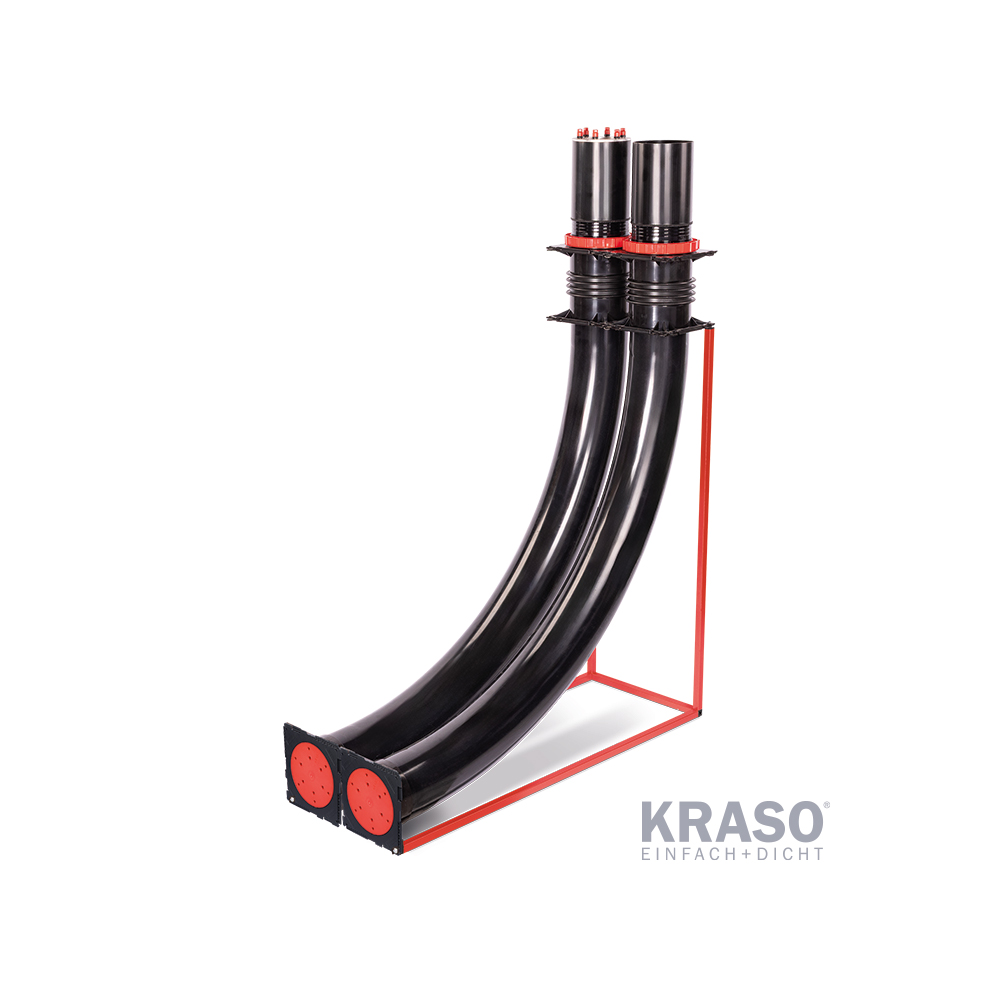

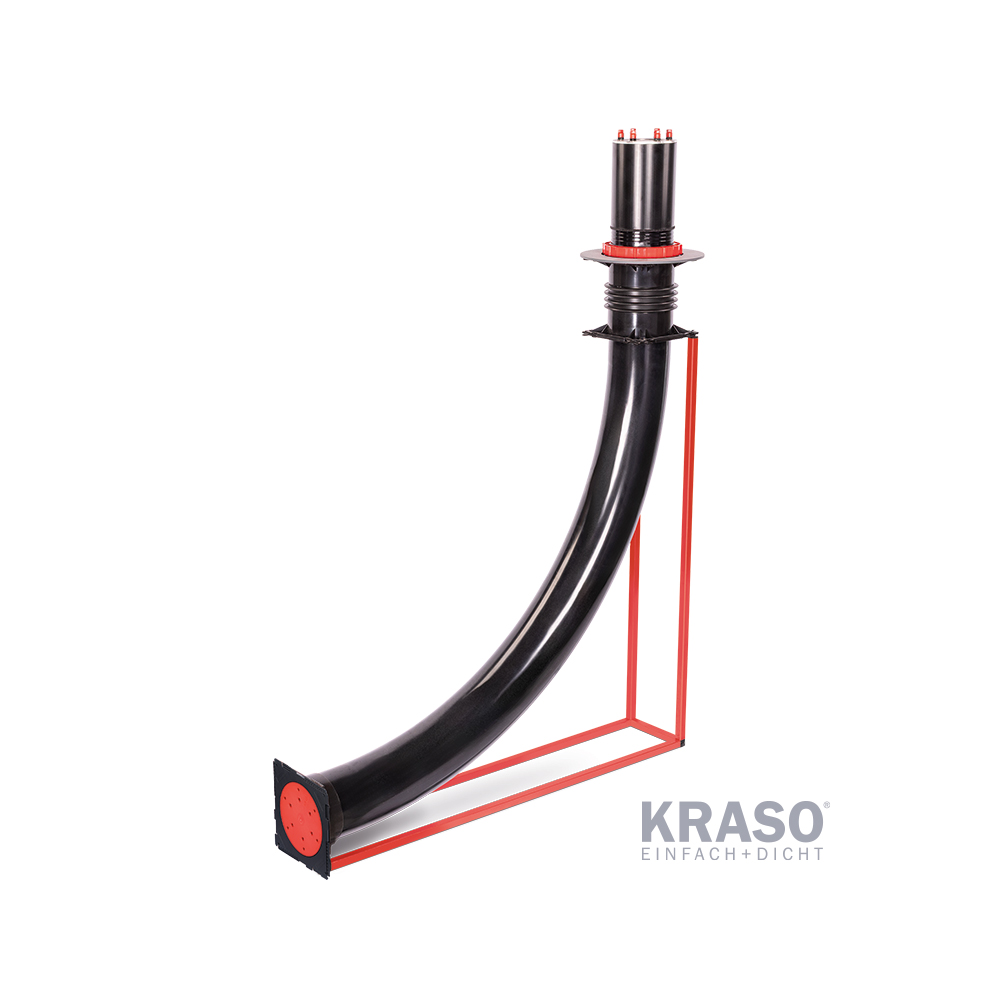

KRASO Cable Inlet Box System KDS 150
KRASO Cable Inlet Box System KDS 150
for the installation of cables and lines as for example water, electricity, telecommunication etc. into buildings without basement, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guidline: Stress class 1 + 2, optional with trowel flange DIN 18533 W1 -E
The flexible system for industry and commercial buildings
+ KRASO Cable Inlet Box System KDS 150 offers you a secure and simple possibility to install cables and pipes right into buildings. Together with the KRASO Cable Penetration System KDS 150 this flexible system offers plenty of combinations. With a radius of 650 mm or 1000 mm you are able to connect pipes and cable protective hoses at a 90-degree angle to buildings without basements.
+ KRASO Cable Inlet Box System KDS 150 offers you a secure and simple possibility to install cables and pipes right into buildings. Together with the KRASO Cable Penetration System KDS 150 this flexible system offers plenty of combinations. With a radius of 650 mm or 1000 mm you are able to connect pipes and cable protective hoses at a 90-degree angle to buildings without basements.
+ Due to the variable plug-in system the KRASO Cable Inlet Box System KDS 150 can be combined to many different sizes - according your requirements.
+ For the installation of lines as e.g. water, electricity, telecommunication etc. into buildings without basement: the ideal solution for industrial and commercial buildings.
+ Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal.
+ With stable installation device for correct positioning before concreting.
+ Flexible plug-in possibilities from the outside due to KRASO Cable Penetration System KDS 150.
+ Additional media line sealing from the inside using KRASO Sealing Inserts.
+ Including: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed.
+ DafStB waterproof concrete guidline: Stress class 1 + 2, optional with trowel flange DIN 18533 W1 -E
Info
Scope of supply:
KRASO Cable Inlet Box System KDS 150, KRASO KDS 150 Empty Pipe Insert 20 cm, 90° empty pipe system, installation device and KRASO KDS 150 Closure Cover
KRASO Cable Inlet Box System KDS 150, KRASO KDS 150 Empty Pipe Insert 20 cm, 90° empty pipe system, installation device and KRASO KDS 150 Closure Cover
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
-
Prüfbericht_KRASO_KDS_Verschlussdeckel (3.25 MiB)
-
Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)
-
Prüfbericht_KRASO_Kabeldurchführung_KDS_150 (597.19 KiB)
-
Prüfzeugnis_KRASO_KDS_150_Gasprüfung_zv (611.94 KiB)
|
Type / Item |
KRASO Cable Inlet Box System KDS 150 |
|||
|
available standard systems |
1 x 1 |
1 x 2 |
1 x 3 |
1 x 4 |
KRASO FLS - Flexible Empty Pipe System
flexible empty pipe-system as a cable protective hose for gas- and water tight connection to KRASO Cable Penetration KDS, over-pressures of 4,0 and 3,0 bar respectively, under-pressures of 0,7 and 0,5 bar respectively, heavy version for severe mechanical stresses, with a smooth interior for smooth cable pulling, and a smooth exterior for optimal sealing, flexible, enhanced pressure and vacuum resistance, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances)Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

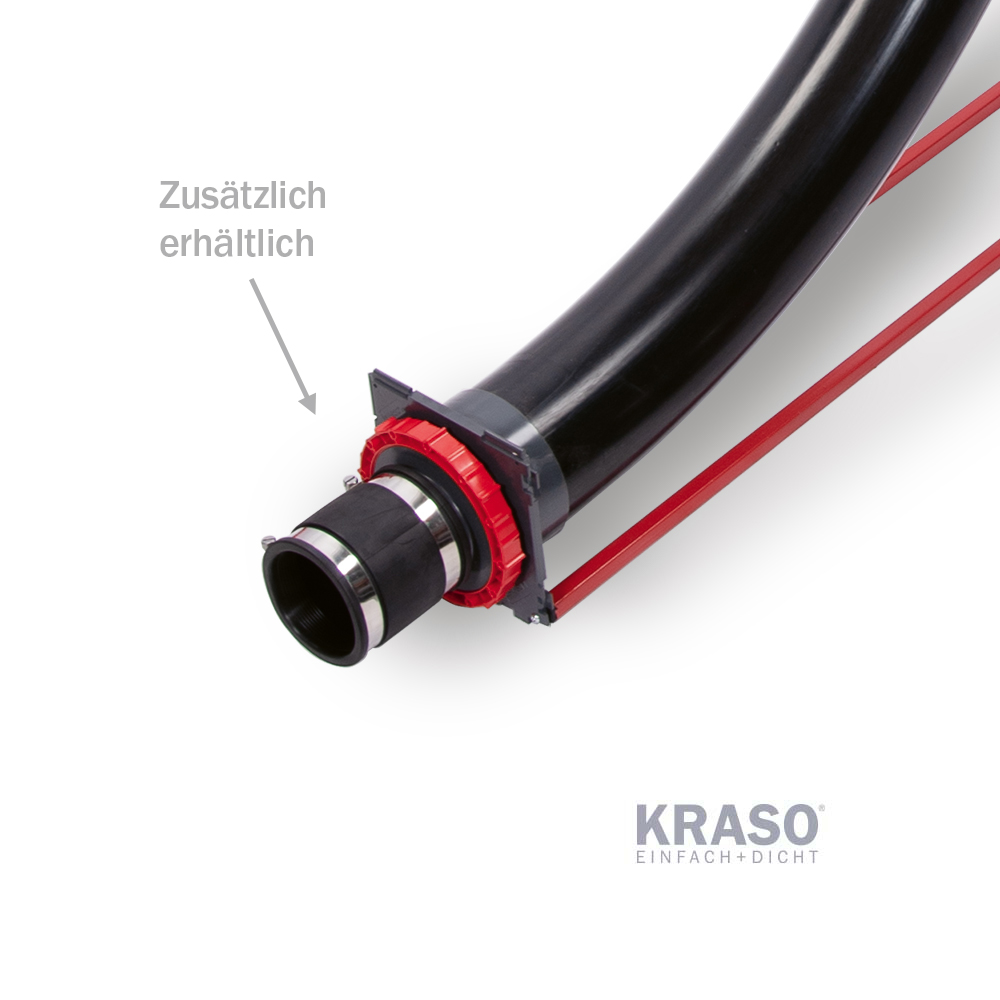

KRASO System Cover 150 with hose adapter
incl. bayonet fitting with union nut and anti-twist lock, hose adapter for the connection of KRASO FLS, PE corrugated pipes or PVC- and PP-pipes to KRASO Cable Penetration KDS 150. Water pressure tight up to 2,5 bar in combination with KRASO FLS. Scope in the table below | DafStB waterproof concrete guidline: Stress class 1 + 2Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

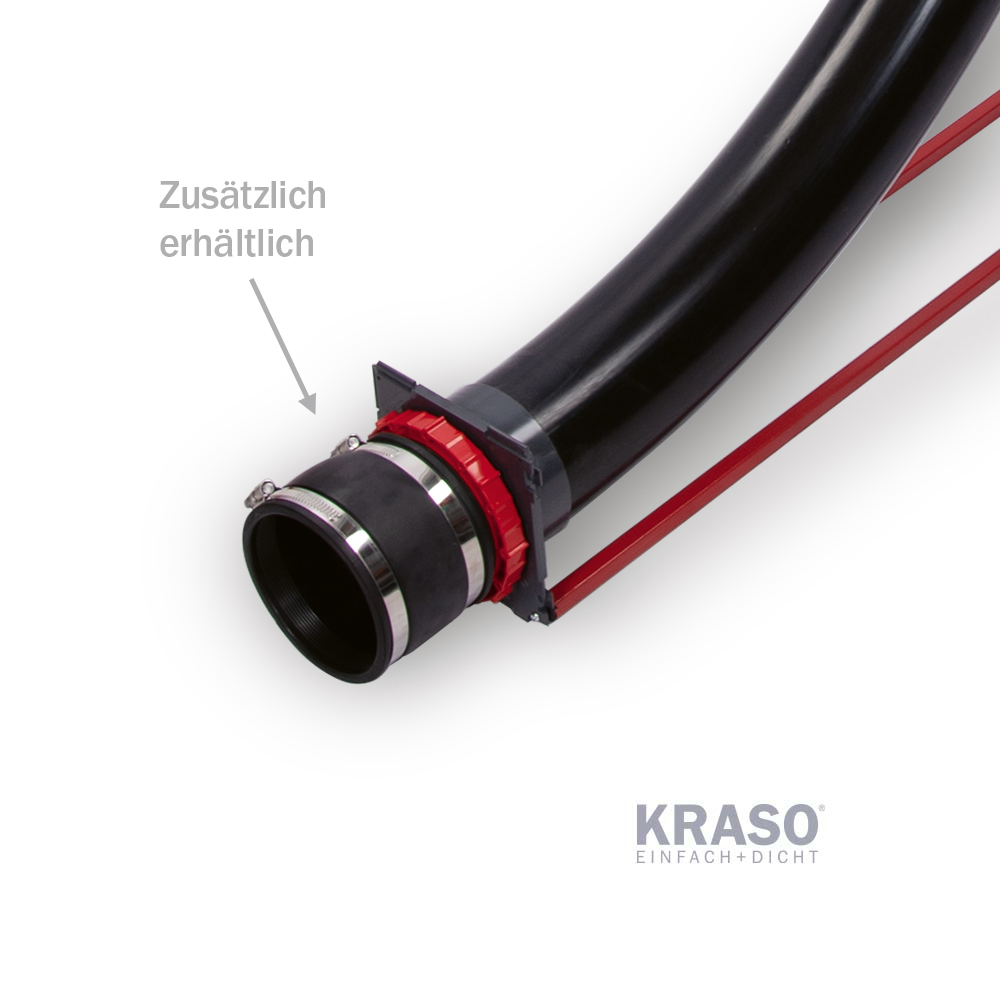

KRASO Hose Connection
for the connection of e.g. KRASO FLS - Flexible Empty Pipe SystemAppropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO Sealing Insert Type IN-GR - split -
internal sealing insert for cable protective hoses Type-R / corrugated pipes for the installation of one or several media lines or cables | DafStB waterproof concrete guideline: Stress class 1 +
2
Inner seal for ribbed media pipes+ Sealing insert for the internal sealing of one or several media lines in cable protective hoses Type-R+ Stepless onion ring technology: universally suitable for a wide range of external diameters of media lines/cables - even for multiple installation of media lines/cables! Split design for retrofit installation!
+ Torque Control Nut KRASO DKM:
integrated torque limiter - no torque wrench required!+ Non-corrosive stainless steel V2A, 30 mm seal
+ DafStB waterproof concrete guideline: stress class 1 +
2
KRASO Quick Sealing Plug for FLS
for sealing the KRASO FLS - Flexible Empty Pipe SystemAppropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO System Sealing Insert KDS 150 Universal Multiple - split -
can be used for penetration of one or several media lines/cables, split design for retrofit installation, Torque Control Nut KRASO DKM, 30 mm seal, external diameter 160 mm, specifically for use in cable penetrations | DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Spacer
guarantees sufficient distance between the flexible empty pipes, light, impact resistant, weather and rot-proof plastic spacerAppropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150
+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

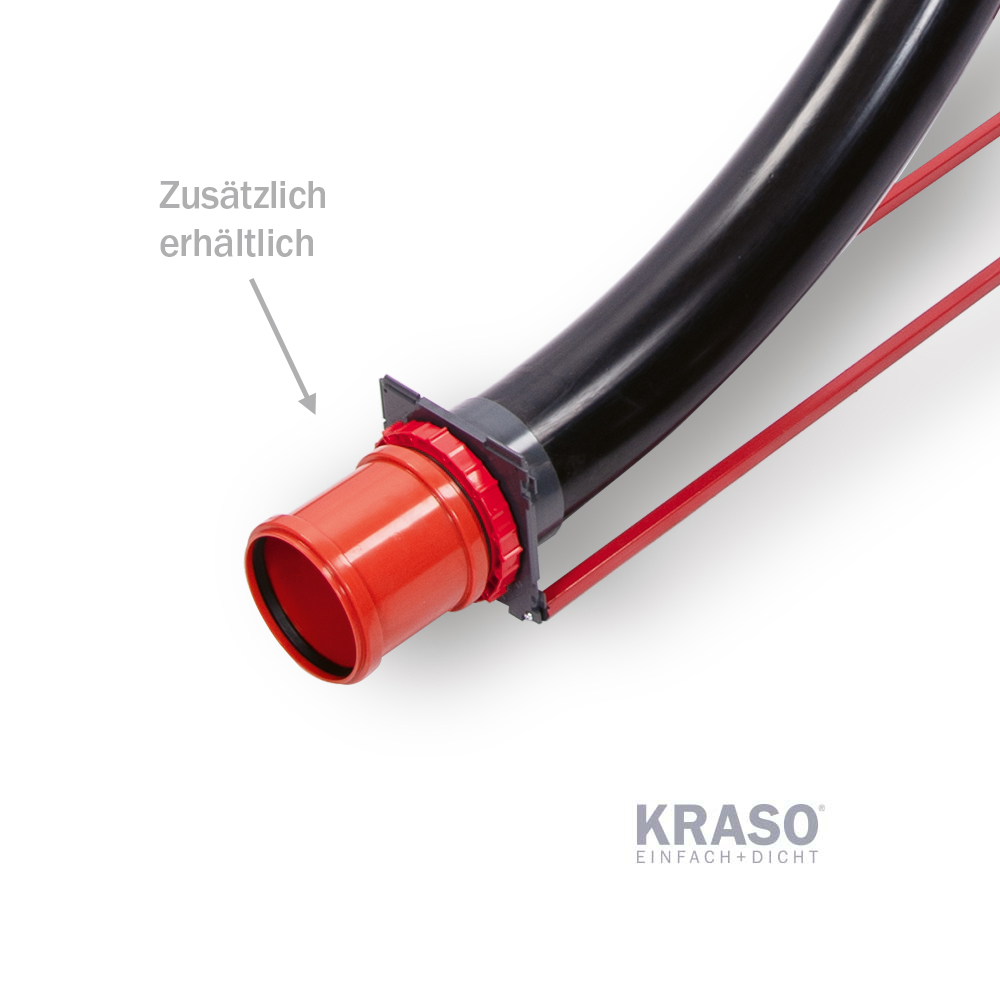

KRASO System Cover 150 with sleeve
incl. bayonet fitting with unit nut and anti-twist lock, sleeve for the connection of PVC- and PP-pipes to KRASO Cable Penetration KDS 150Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO System Cover KDS 150 - heat-shrink technology
incl. bayonett fitting with unit nut and anti-twist lock (prevents unintentional opening), with 1, 3 or 7 adapters for installation of pipes or cables, incl. heat-shrink hose (length approx. 20 cm) for use with heat-shrink technology, KRASO System Cover KDS 150 - heat-shrink technology 3-fold and 7-fold with factory-made, water pressure tight cover, simple opening by knocking off before installation (on site), scope in the table below | DafStB waterproof concrete guidline: Stress class 1 + 2Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150
+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO Y-Wrench
Y-Wrench to open / close the KDS closure cover, available for KRASO Cable Penetration KDS 90 and KDS 150Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150
+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
