KRASO Builder´s Convenience Box

KRASO Builder´s Convenience Box - wall

multi utility connection for supply lines (gas, water, electricity, telecommunication) for buildings with basement, KRASO BKP Gas Installation Kits optionally available | DafStB waterproof concrete guideline: stress class 1 + 2, DIN18533 W1 -E and W2.1 -E

Multi utility connection for buildings with basement: gas, water, electricity and telecommunication

+ DVGW-certified according VP 601: complete system is gas- and water pressure tight up to 1 bar!

+ For core drilling and casing DN 200 (199 - 203 mm). For precast walls and in-situ concrete walls!

+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm

+ Tight in waterproof concrete structures with stress class 1 (permanently or temporarily pressing water)

+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101! Resistant to methane gas!

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!

+ Split end plugs for easy installation!

+ Ready for the network connection of gas, water, electricity and telecommunication: tested in accordance with DVGW! Including KRASO BKP - Sealing Inserts for electricity/water, telecommunication, electricity + telecommunication

+ Optionally available KRASO BKP Gas Installation Kits:
• gas utility connection Schuck DN 25
• gas utility connection RMA DN 25
• gas utility connection Voigt DN 25
• gas utility connection Voigt DN 32

+ Including KRASO BKP - wall - Extension Set!

+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E

Info

Scope of supply:

• KRASO Builder’s Convenience Box - wall including
- internal sealing element with pre-installed casing pipes incl. protective covers for the installation of supply lines such as gas, water, electricity, telecommunication

- external sealing element

• KRASO BKP - wall - Extension Set including
- 4 x double sleeve DN 75
- 8 x sealing rings
- lubricant

• installation instructions KRASO Builder’s Convenience Box - wall

• installation kits including:
- KRASO BKP - Sealing Insert - electricity/water - 2 pcs.
with stepless onion ring technology 26 - 50 mm or blind
- primary sealing + secondary sealing electricity/water
- casing pipe end plugs including
· end plug electricity/water - split -
· hose connection 80

- KRASO BKP - Sealing Insert - telecommunication -
clamping range: 5 - 13 mm, 3 x 7 - 13 mm, 13 - 21 mm
- primary sealing + secondary sealing telecommunication
- casing pipe end plugs including
· end plug telecommunication - split -
· hose connection 80

- KRASO BKP - Sealing Insert - electricity + telecommunication
clamping range: electricity 25 - 36 mm / telecommunication 2 x 5 - 10 mm, 3 x 7 - 14 mm,
- primary sealing + secondary sealing electricity + telecommunication
- casing pipe end plugs including
· end plug for electricity + telecommunication
· hose connection 80

- a tube of lubricant

optionally available KRASO BKP Gas Installation Kits:
• Schuck DN 25 consists of primary and secondary sealing as well as gas end plug
• RMA DN 25 consists of primary and secondary sealing as well as gas end plug
• Voigt DN 25 consists of primary and secondary sealing as well as gas end plug
• Voigt DN 32 consists of primary and secondary sealing as well as gas end plug

Downloads

KRASO Bauherren-Komfortpaket - Wand

Datenblatt KRASO Bauherren-Komfortpaket - Wand

Montageanleitung KRASO Bauherren-Komfortpaket - Wand

Produktinfo KRASO Bauherren-Komfortpaket - Wand

Prüfbericht KRASO BKP Dichteinsatz

Prüfbericht KRASO Bauherren-Komfortpaket - Wand

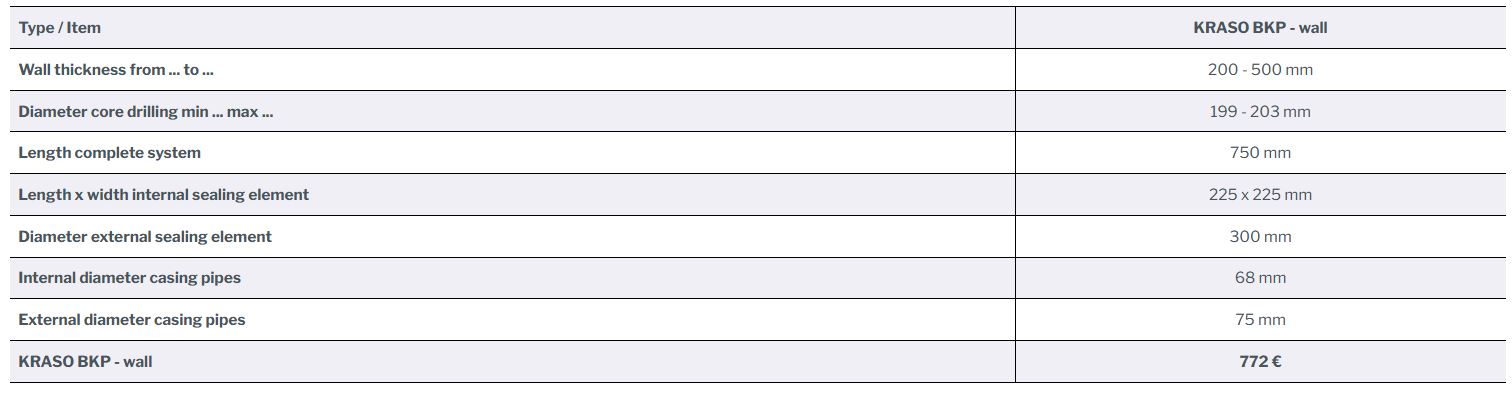

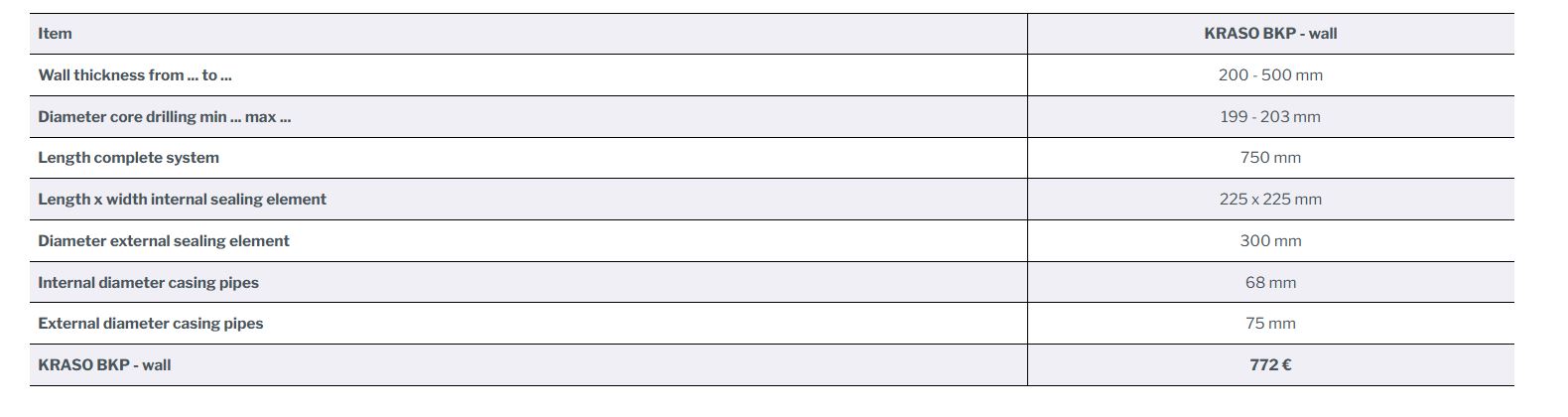

Type / Item	KRASO BKP - wall
Wall thickness from ... to ...	200 - 500 mm
Diameter core drilling min ... max ...	199 - 203 mm
Length complete system	750 mm
Length x width internal sealing element	225 x 225 mm
Diameter external sealing element	300 mm
Internal diameter casing pipes	68 mm
External diameter casing pipes	75 mm
KRASO BKP - wall	772 €

Downloads auf ausschreiben.de

KRASO Builder‘s Convenience Box - floor - SET

multi utility connection for supply lines (gas, water, electricity, telecommunication) for buildings without basement incl. KRASO FLS 90, incl. installation kits for electricity/water (2 x), telecommunication, electricity + telecommunication as standard configuration for KRASO BKP - floor - SET - 4-fold, desired configuration for the KRASO BKP - floor - SET - 3-fold, 2-fold, 1-fold, KRASO BKP Gas Installation Kits are optionally available | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -EThe multi utility connection with integrated installation kit+ The convenient solution for builders: safe and tight installation of gas, water, electricity and telecommunication lines into buildings without basement!+ DVGW-certified according to VP 601: overall system is gas- and water pressure tight up to 1 bar! Gas- and odour-tight – high-quality in terms of TA-Air+ Radon-tight! Resistant to methane gas!+ KRASO 4 Seal, exterior sealing of concrete: 10 bar! Overall system in gas- and water pressure tight up to 1 bar!+ Simple installation due to stable installation device and visual check of the snap-on-socket - helps to avoid installation errors+ Hose diameter: external 90 mm - internal 80 mm+ With integrated installation kit: ready-assembled components for the utility connection of electricity, water and telecommunication lines, including floor screed insert and height fixation. No need to pass on the installation kit to other installers+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period installation cover+ Easy integration of vapour barrier foils due to the roughened trowel flange! + Height-adjustable base plate as well as floor screed + KRASO BKP Gas Installation Kits optionally available!+ Split end plugs for easy installation+ Including extension set+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E

KRASO Builder´s Convenience Box - wall - ESH

single utility connection for supply lines (gas, water, electricity or telecommunication) for buildings with basement, incl. extension set | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -EConvenient, safe, tight connection to the network - gas, water, electricity or telecommunication+ Simple and safe single utility connection for new buildings or rehabilitation for buildings with basement+ Flexible installation: gas, water, electricity or telecommunication - including a suitable installation/mounting set+ Double installation possible: electricity and telecommunication!+ DVGW-certified according to VP 601: complete system is gas- and water pressure tight up to 1 bar!+ For core drilling and casing DN 100 (99 - 103 mm). For precast walls and in-situ concrete walls!+ For wall thicknesses from 160 - 500 mm+ Tight in waterproof concrete structures with stress class 1 (permanently or temporarily pressing water)+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm+ Radon tightness IAF tested - according to FHRK leaflet MB 101! Resistant to methane gas!+ Gas and odour-tight - high-quality in terms of TA-Air!+ Split end plugs for easy installation!+ Including extension set + DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E

KRASO Builder´s Convenience Box - wall - SWP

single utility connection for control cables and refrigerant lines of air-water heat pumps (split) for buildings with basement | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -EUtility connection for air- water- heat pumps (split)+ Simple and safe single utility connection for new buildings and rehabilitation of buildings with a basement+ For core drilling DN 150 (149 - 153 mm). For precast walls, in-situ concrete walls and brickwork, for wall thickness 160 - 500 mm+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm+ With KRASO Sealing Insert Type SWP with large flange for internal installation.Scope of application:For control cables, closed: stepless onion ring technology 2 x 5 - 18 mm, with plugFor refrigerant lines, split:- onion ring technology 1 x 6 - 13 mm for 1/4 or 3/8 inch lines, with plug- onion ring technology 1 x 6 - 18 mm for 1/4, 3/8, 1/2 or 5/8 inch lines, with plug+ Radon tightness IAF tested - according to FHRK leaflet MB 101! + DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E

KRASO Builder´s Convenience Box - wall - NFE

multi utility connection for supply lines (local, district or geothermal heating, water, electricity, telecommunication) for buildings with basement | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -EComfortable connection to your basement: heat pump, local, district or geothermal heating + Heat pump or local, district or geothermal heating system each with supply and reflux!+ For heat pumps or local, district or geothermal heating lines with diameter 110, 90, 75, 50, 40 or 32 mm, optionally available with a diameter of 125 mm+ For core drilling and casing DN 300 (299 - 303 mm). For precast walls and in-situ concrete walls! + External sealing element with sealing flange according to DIN 18533! Seal width: 90 mm.+ Gas- and odour tight - high quality in terms of TA-Air!+ Certified up to 1 bar!+ Radon tightness IAF tested - according to FHRK leaflet MB 101! Resistant to methane gas!+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Including all components for a secure grid connection of heat pump, local, district or geothermal heating, water, electricity and telecommunication!+ Including casing pipe end plugs - warm bridges are avoided!+ Optionally available: KRASO BKP - wall - NFE - Extension Set - for cable protective hoses, KRASO FLS or rigid casing pipes!+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E

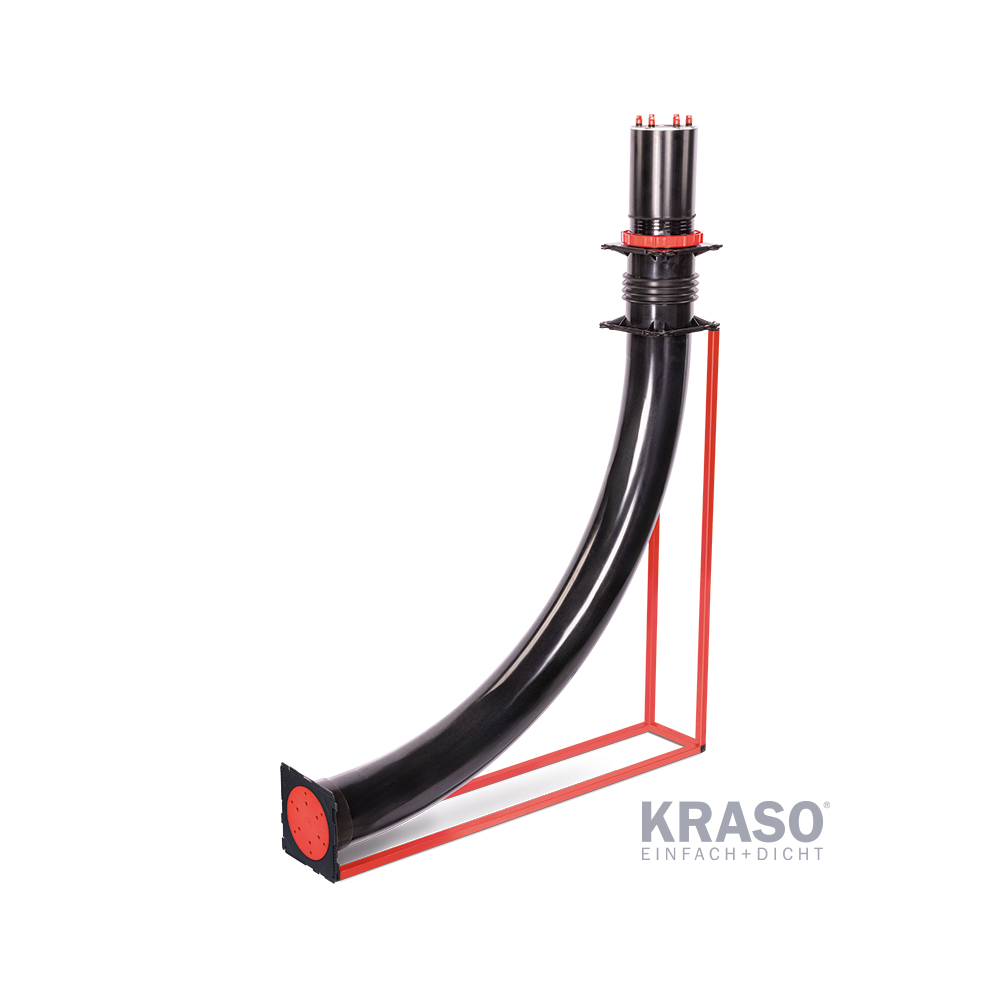

KRASO Cable Inlet Box System KDS 150
