multi utility connection for supply lines (local, district or geothermal heating, water, electricity, telecommunication) for buildings with basement | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Comfortable connection to your basement: heat pump, local, district or geothermal heating
+ Heat pump or local, district or geothermal heating system each with supply and reflux!
+ For heat pumps or local, district or geothermal heating lines with diameter 110, 90, 75, 50, 40 or 32 mm, optionally available with a diameter of 125 mm
+ For core drilling and casing DN 300 (299 - 303 mm). For precast walls and in-situ concrete walls!
+ External sealing element with sealing flange according to DIN 18533! Seal width: 90 mm.
+ Gas- and odour tight - high quality in terms of TA-Air!
+ Certified up to 1 bar!
+ Radon tightness IAF tested - according to FHRK leaflet MB 101! Resistant to methane gas!
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Including all components for a secure grid connection of heat pump, local, district or geothermal heating, water, electricity and telecommunication!
+ Including casing pipe end plugs - warm bridges are avoided!
+ Optionally available: KRASO BKP - wall - NFE - Extension Set - for cable protective hoses, KRASO FLS or rigid casing pipes!
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
+ For heat pumps or local, district or geothermal heating lines with diameter 110, 90, 75, 50, 40 or 32 mm, optionally available with a diameter of 125 mm
+ For core drilling and casing DN 300 (299 - 303 mm). For precast walls and in-situ concrete walls!
+ External sealing element with sealing flange according to DIN 18533! Seal width: 90 mm.
+ Gas- and odour tight - high quality in terms of TA-Air!
+ Certified up to 1 bar!
+ Radon tightness IAF tested - according to FHRK leaflet MB 101! Resistant to methane gas!
+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!
+ Including all components for a secure grid connection of heat pump, local, district or geothermal heating, water, electricity and telecommunication!
+ Including casing pipe end plugs - warm bridges are avoided!
+ Optionally available: KRASO BKP - wall - NFE - Extension Set - for cable protective hoses, KRASO FLS or rigid casing pipes!
+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Info
Scope of supply:
• KRASO Builder’s Convenience Box - wall - NFE including
- internal sealing element with 5 casing pipes for the installation of supply lines for heat pump, local, district or geothermal heating (supply and reflux), water, electricity, telecommunciation incl. protection covers
- external sealing element
• installation instructions KRASO Builder’s Convenience Box - wall - NFE
• installation kit including
• KRASO Builder’s Convenience Box - wall - NFE including
- internal sealing element with 5 casing pipes for the installation of supply lines for heat pump, local, district or geothermal heating (supply and reflux), water, electricity, telecommunciation incl. protection covers
- external sealing element
• installation instructions KRASO Builder’s Convenience Box - wall - NFE
• installation kit including
- KRASO BKP - wall - NFE - Sealing Insert - 2 pcs.
Scope of application: 32, 40, 50, 75, 90, 110 mm or blind, optionally available: 125 mm
- primary sealing + secondary sealing NFE
· 2 x end plug NFE
· 2 x hose connection 125/125
- KRASO BKP - Sealing Insert – electricity/water – 2 pcs.
with stepless onion ring technology 26 - 50 mm or blind
- primary sealing + secondary sealing electricity/water
- casing pipe end plugs including
· end plugs electricity/water - split -
· hose connection 80
- KRASO BKP - Sealing Insert - telecommunication -
clamping range: 5 - 13 mm, 3 x 7 - 13 mm, 13 - 21 mm
- primary sealing + secondary sealing telecommunication
- casing pipe end plugs including
· end plug telecommunication - split -
· hose connection 80
Optionally available:
KRASO BKP - wall - NFE - Extension Set
Further wall thicknesses available on request!
Downloads
KRASO Bauherren-Komfortpaket - Wand - NFE
|

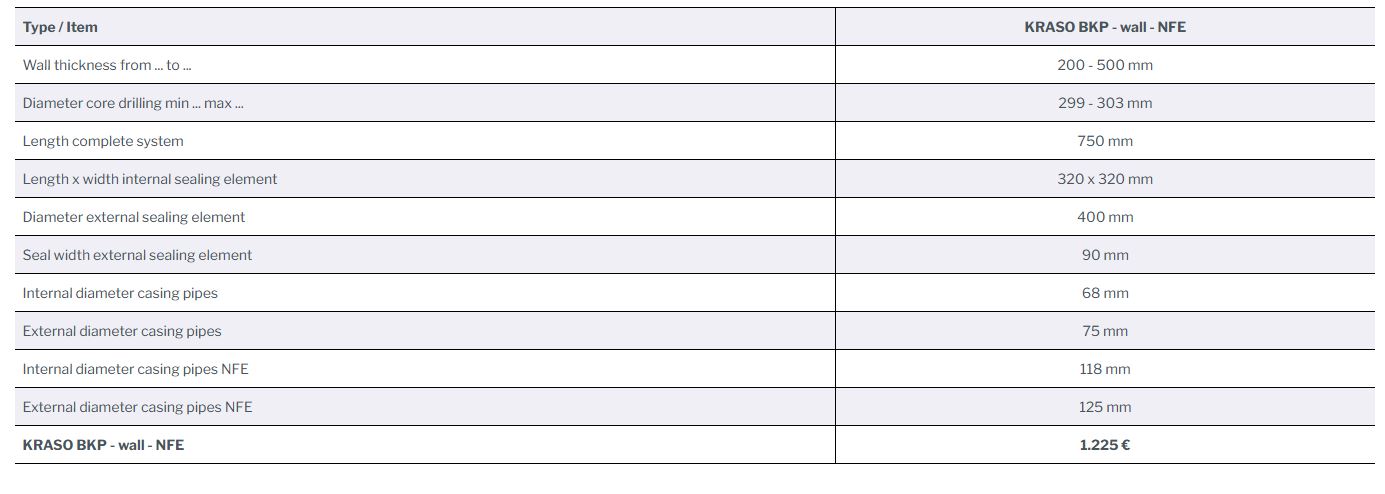

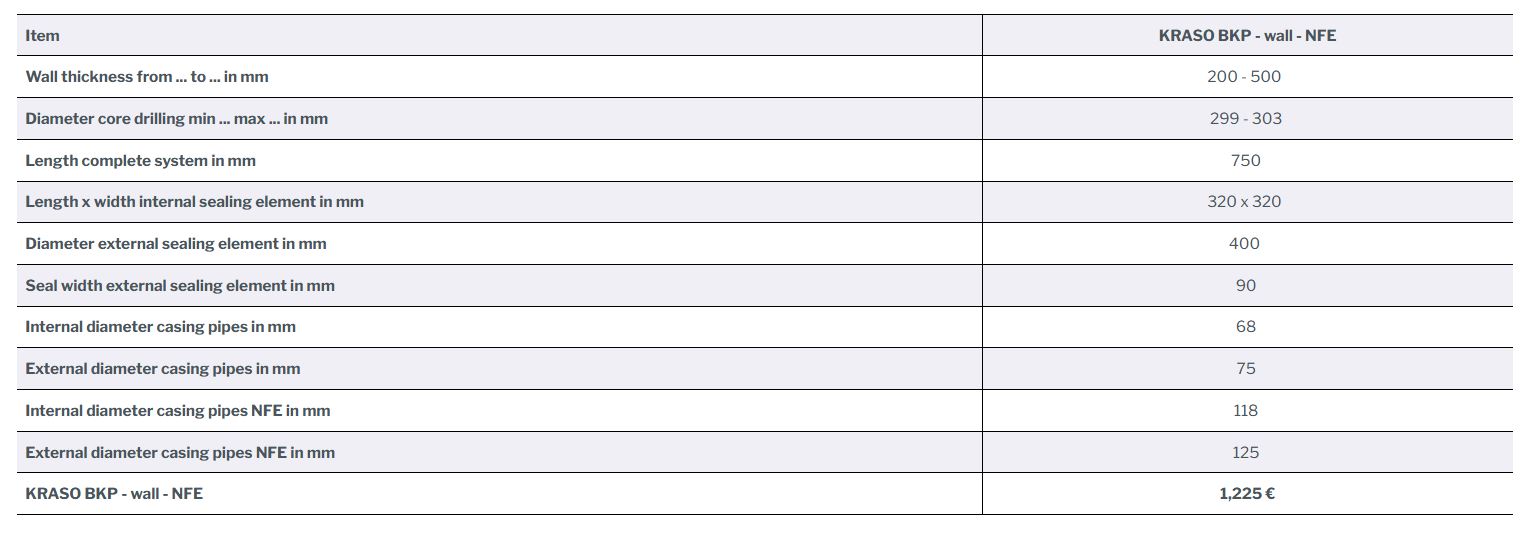

Type / Item |
KRASO BKP - wall - NFE |
|
Wall thickness from ... to ... |
200 - 500 mm |
|
Diameter core drilling min ... max ... |
299 - 303 mm |
|
Length complete system |
750 mm |
|
Length x width internal sealing element |
320 x 320 mm |
|
Diameter external sealing element |
400 mm |
|
Seal width external sealing element |
90 mm |
|
Internal diameter casing pipes |
68 mm |
|
External diameter casing pipes |
75 mm |
|
Internal diameter casing pipes NFE |
118 mm |
|
External diameter casing pipes NFE |
125 mm |
|
KRASO BKP - wall - NFE |
1.225 € |
KRASO Builder´s Convenience Box - floor - NFE - Basis
for the connection to the local, district and geothermal energy network. Optionally available: KRASO Foil Flange for the integration into the floor sealing | DafStB waterproof concrete guideline: stress class 1 + 2Simple, comfortable, tight up to the heat pump or to the local, district and geothermal energy network+ The comfortable solution for the connection to air-water-heat pump (monobloc) or to the local, district and geothermal energy network - for flexible and insulated pipelines with integrated supply and reflux+ Fully assembled stable installation device: positioning – arrangement – concreting – connection – ready!+ For buildings without basement: single-/multi-family houses, public and commercial buildings+ On request also available with KRASO Foil Flange – for the integration into the floor sealing+ KRASO Builder´s Convenience Box - floor - NFE - Basis including: • KRASO Builder´s Convenience Box - floor - NFE - Basis DN 200, DN 250 or DN 315 with water pressure tight surrounding KRASO 4 Seal • KRASO Empty Pipe Insert KG 2000: for the internal floor construction • Building period protection cover+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
KRASO Builder‘s Convenience Box - floor - SET
multi utility connection for supply lines (gas, water, electricity, telecommunication) for buildings without basement incl. KRASO FLS 90, incl. installation kits for electricity/water (2 x), telecommunication, electricity + telecommunication as standard configuration for KRASO BKP - floor - SET - 4-fold, desired configuration for the KRASO BKP
- floor - SET - 3-fold, 2-fold, 1-fold, KRASO BKP Gas Installation Kits are optionally available | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -EThe multi utility connection with integrated installation kit+ The convenient solution for builders: safe and tight installation of gas, water, electricity and telecommunication lines into buildings without basement!+ DVGW-certified according to VP 601:
overall system is gas- and water pressure tight up to 1 bar! Gas- and odour-tight – high-quality in terms of TA-Air+ Radon-tight! Resistant to methane gas!+ KRASO 4 Seal, exterior sealing of concrete: 10 bar! Overall system in gas- and water pressure tight up to 1 bar!+ Simple installation due to stable installation device and visual check of the snap-on-socket - helps to avoid installation errors+ Hose diameter: external 90 mm - internal 80 mm+ With integrated installation kit: ready-assembled components for the utility connection of electricity, water and telecommunication lines, including floor screed insert and height fixation. No need to pass on the installation kit to other installers+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period installation cover+ Easy integration of vapour barrier foils due to the roughened trowel flange!
+
Height-adjustable base plate as well as floor screed
+ KRASO BKP Gas Installation Kits optionally available!+ Split end plugs for easy installation+ Including extension set+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
KRASO Builder´s Convenience Box - wall
multi utility connection for supply lines (gas, water, electricity, telecommunication) for buildings with basement, KRASO BKP Gas Installation Kits optionally available | DafStB waterproof concrete guideline: stress class 1 + 2, DIN18533 W1 -E and W2.1 -E Multi utility connection for buildings with basement: gas, water, electricity and telecommunication+ DVGW-certified according VP 601: complete system is gas- and water pressure tight up to 1 bar!+ For core drilling and casing DN 200 (199 - 203 mm). For precast walls and in-situ concrete walls!+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm+ Tight in waterproof concrete structures with stress class 1 (permanently or temporarily pressing water)+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101! Resistant to methane gas!+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Split end plugs for easy installation!+ Ready for the network connection of gas, water, electricity and telecommunication: tested in accordance with DVGW! Including KRASO BKP - Sealing Inserts for electricity/water, telecommunication, electricity + telecommunication+ Optionally available KRASO BKP Gas Installation Kits:
• gas utility connection Schuck DN 25
• gas
utility
connection RMA DN 25 • gas
utility
connection Voigt DN 25 • gas
utility
connection Voigt DN 32+ Including KRASO BKP - wall - Extension Set!+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Cable Inlet Box KDS 150 - special
bending radius approx. 200 cm, for the secure connection of supply lines like e.g. water - electricity - telecommunication into buildings without basement. With installation device, empty pipe extension 20 cm and water pressure tight surrounding KRASO 4 Seal and 2 KRASO KDS Closure Covers
