KRASO Builder’s Convenience Box - wall - garden

For more convenience in the garden!

+ Lighting, pool, garden sauna, the wall box for the electric car and many other applications: All projects can be put into place with the KRASO Builder’s Convenience Box - wall - garden without any issues!

+ For core hole DN 200 (199-203 mm). One for all: precast walls, in-situ concrete walls, casings and core holes!

+ Tight in waterproof concrete structures in stress class 1 (standing or occasionally pressing water).

+ Radon-tight! Resistant to methane gas!

+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!

+ Split end plugs for easy installation!

+ Ready for the network connection of water, electricity and network lines:
Checked in accordance with DVGW! Includes KRASO BKP - Sealing Insert for elecricity/water (2 x), telecommunication, electricity + telecommunicaton.

+ Optional available external sealing element with sealing flange accordinng to DIN 18533! Seal width: 80 mm.

+ DafStB waterproof concrete guideline: Stress class 1 + 2, with optional external sealing element DIN 18533 W1.1 -E and W2.1 -E.

Info

Scope of supply:

• KRASO Builder’s Convenience Box - wall - gardens including
- internal sealing element with pre-installed casing pipes incl. protective cover for the installation of supply lines like gas, water, electricity, telecommunication

• installation instruction KRASO Builder’s Convenience Box - wall

• folding rule

• Installation kit including:
- KRASO BKP - Sealing Insert - electricity/water - 2 pieces
with steppless ring technology 26 - 50 mm or blind
- primary sealing + secondary sealing for electricity/water
- end plugs

- KRASO BKP - Sealing Insert - telecommunication -
clamping range: 5 - 13 mm, 3 x 7 - 13 mm, 13 - 21 mm
- primary sealing + secondary sealing for telecommunication
- end plugs

- KRASO BKP - Sealing Insert - electricity + telecommunication -
- clamping range: electricity 25 - 36 mm / telecommunication 2 x 5 - 10 mm, 3 x 7 - 14 mm
- primary sealing + secondary sealing for telecommunication
- end plugs
- tube of lubricant

• Optional available: External sealing element

Downloads

Produktinformation

Produktinfo_KRASO_Hausausführungen_BKP_Wand_Garten (1.48 MiB)

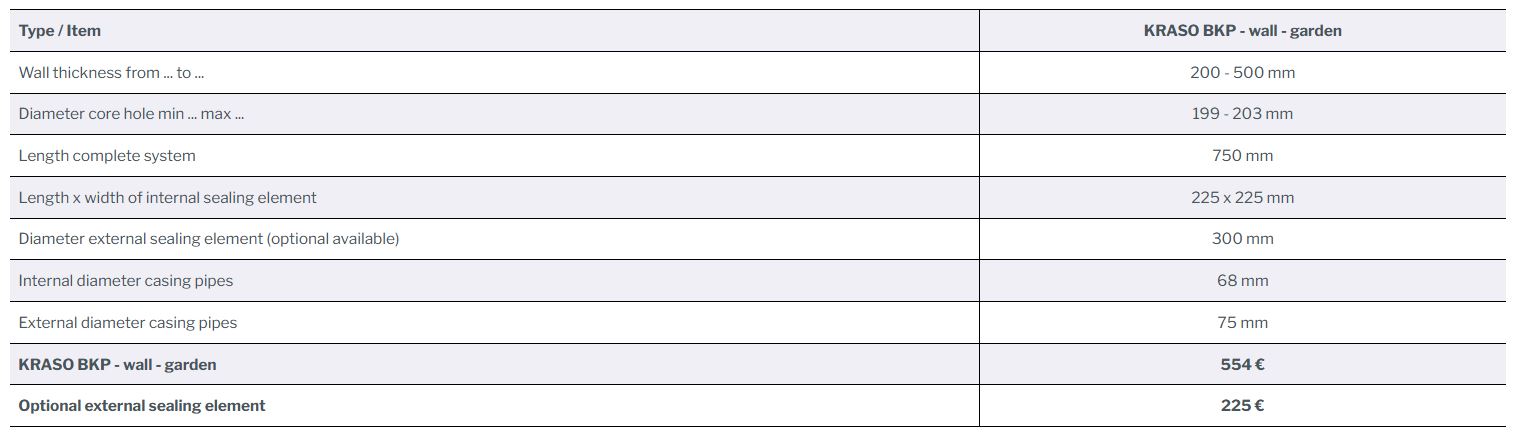

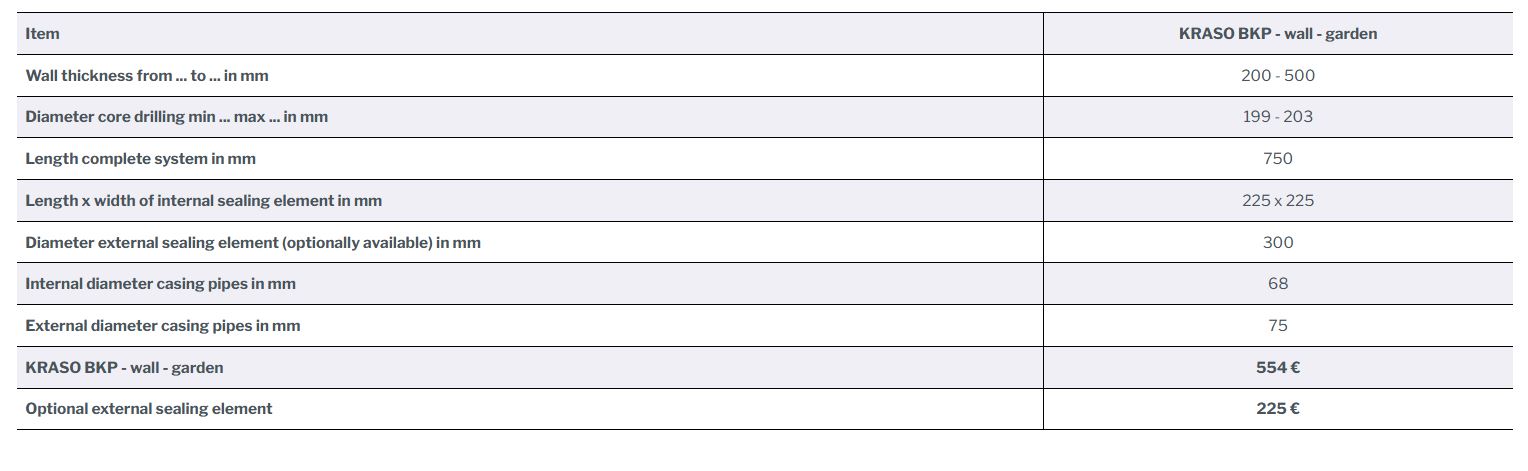

Type / Item	KRASO BKP - wall - garden
Wall thickness from ... to ...	200 - 500 mm
Diameter core hole min ... max ...	199 - 203 mm
Whole system length	750 mm
Length x width of internal sealing element	225 x 225 mm
Diameter of external sealing element (optional available)	300 mm
Internal diameter casing pipes	68 mm
External diameter casing pipes	75 mm
