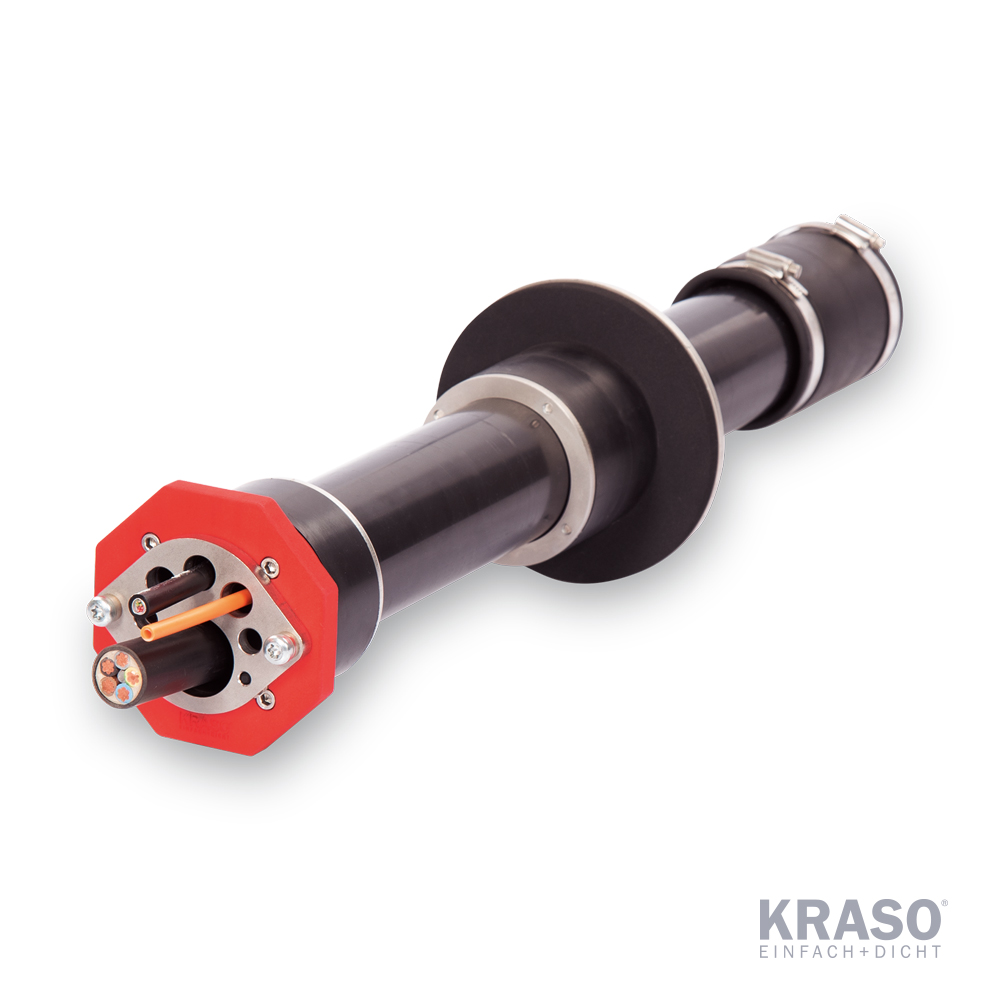

KRASO Builder´s Convenience Box - wall - ESH
KRASO Builder´s Convenience Box - wall - ESH
single utility connection for supply lines (gas, water, electricity or telecommunication) for buildings with basement, incl. extension set | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Convenient, safe, tight connection to the network - gas, water, electricity or telecommunication
+ Simple and safe single utility connection for new buildings or rehabilitation for buildings with basement
+ Flexible installation: gas, water, electricity or telecommunication - including a suitable installation/mounting set
+ Double installation possible: electricity and telecommunication!
+ DVGW-certified according to VP 601: complete system is gas- and water pressure tight up to 1 bar!
+ For core drilling and casing DN 100 (99 - 103 mm). For precast walls and in-situ concrete walls!
+ For wall thicknesses from 160 - 500 mm
+ Tight in waterproof concrete structures with stress class 1 (permanently or temporarily pressing water)
+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm
+ Radon tightness IAF tested - according to FHRK leaflet MB 101! Resistant to methane gas!
+ Gas and odour-tight - high-quality in terms of TA-Air!
+ Split end plugs for easy installation!
+ Including extension set
+
DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
Info
Scope of supply:
KRASO Builder’s Convenience Box - wall - ESH including
KRASO Builder’s Convenience Box - wall - ESH including
as well as one of the following BKP gas installation kits:
• internal sealing element with pre-installed casing pipe incl. protective cover for the installation of supply lines such as gas, water, electricity, telecommunication
- external sealing element
- installation instructions KRASO BKP - wall - ESH
• KRASO BKP - wall - ESH - Extension Set including
- double sleeve DN 75
- 2 x sealing ring
- lubricant
• Schuck DN 25 consists of primary and secondary sealing as well as gas end plug
• Voigt DN 25 consists of primary and secondary sealing as well as gas end plug
• Voigt DN 32 consists of primary and secondary sealing as well as gas end plug
Downloads
|

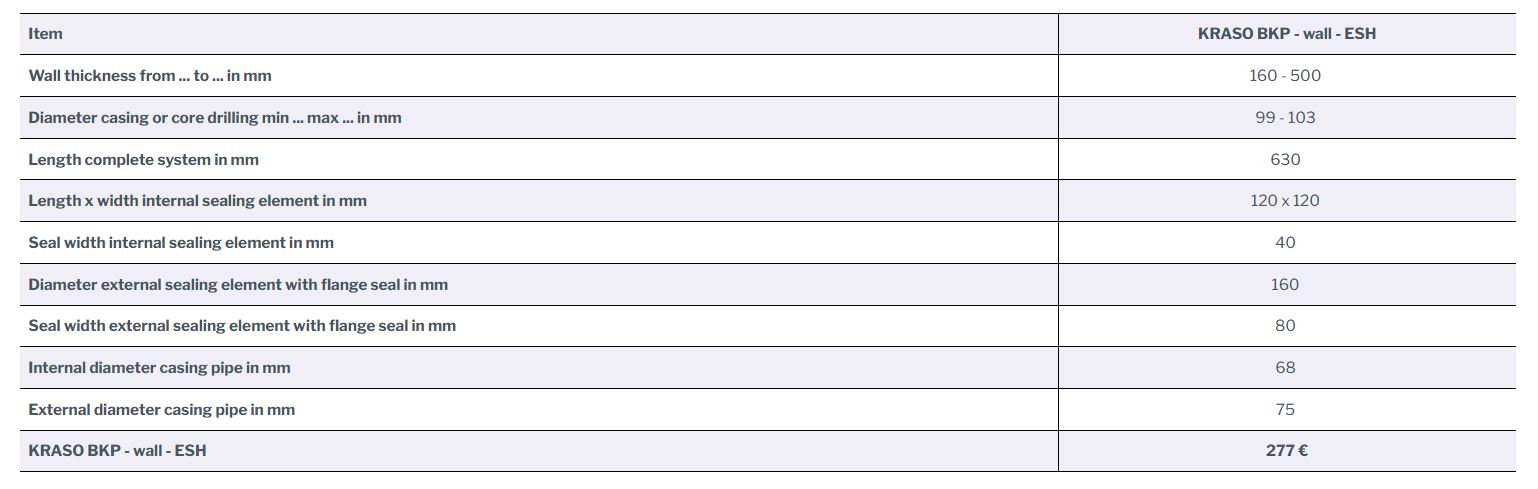

Type / Item |
KRASO BKP - wall - ESH |
|
Wall thickness from ... to ... |
160 - 500 mm |
|
Diameter casing or core drilling min ... max ... |
99 - 103 mm |
|
Length complete system |
630 mm |
|
Length x width internal sealing element |
120 x 120 mm |
|
Seal width internal sealing element |
40 mm |
|
Diameter external sealing element with flange seal |
160 mm |
|
Seal width external sealing element with flange seal |
80 mm |
|
Internal diameter casing pipe |
68 mm |
|
External diameter casing pipe |
75 mm |
|
KRASO BKP - wall - ESH |
277 € |
