KRASO Builder´s Convenience Box - floor - SET

multi utility connection for supply lines (gas, water, electricity, telecommunication) for buildings without basement incl. KRASO FLS 90, incl. installation kits for electricity/water (2 x), telecommunication, electricity + telecommunication as standard configuration for KRASO BKP - floor - SET - 4-fold, desired configuration for the KRASO BKP - floor - SET- 3-fold, 2-fold, 1-fold, KRASO BKP Gas Installation Kits are optionally available | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E

The multi utility connection with integrated installation kit

+ The convenient solution for builders: safe and tight installation of gas, water, electricity and telecommunication lines into buildings without basement!

+ DVGW - certified according to VP 601: complete system is gas- and water pressure tight up to 1 bar!
Gas- and odour-tight - high-quality in terms of TA-Air

+ Radon-tight! Resistant to methane gas!

+ KRASO 4 Seal: exterior sealing of concrete: 10 bar! Overall system is gas- and water pressure tight up to 1 bar!

+ Simple installation due to stable installation device and visual check of the snap-on-socket – helps to avoid installation errors

+ Hose diameter: external 90 mm - internal 80 mm

+ With intergrated installation kit: ready-assembled components for the utility connection of electricity, water and telecommunication lines, including floor screed insert and height fixation. No need to pass on the installation kit to other installers

+ For flush-mount installation in the base plate – no tripping hazards, no wall damages! Including building period installation cover

+ Easy integration of vapour barrier foils due to the roughened trowel flange!

+ Height-adjustable base plate as well as floor screed

+ KRASO BKP Gas Installation Kits optionally available

+ Split end plugs for easy installation

+ Including extension set

+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E

Info

Scope of supply:

the following details are for the KRASO Builder’s Convenience Box - floor - SET - 4-fold with KRASO FLS 90 (3 meter), the delivery is differing with regard to other designs (3-fold, 2-fold, 1-fold).

• foot

• foot extension

• pair of supporting bars

• height-adjustable base plate element 4-fold with gas- and water pressure tight KRASO 4 Seal, trowel flange, visual check for locking-sleeve and integrated installation kit with building period installation cover

• 4 x Flexible Empty Pipe System KRASO FLS 90 (3 meters) with vulcanized locking-sleeve and closure cover

• height-adjustable KRASO BKP Floor Screed Insert with protective cover and lubricant

• height fixation for KRASO BKP Floor Screed Insert (2 pcs.)

• installation instructions KRASO Builder’s Convenience Box - floor - SET

• KRASO BKP - floor - extension set including

- 4 x adapter tube (DN 90 to DN 75)

- 8 x shrink hose 95/25

• installation kits including:

– KRASO BKP - Sealing Insert - electricity/water - 2 pcs.

with stepless onion ring technology 26 - 50 mm or blind

- primary sealing + secondary sealing electricity/water

- casing pipe end plugs including

· end plugs electricity/water - split -

· hose connection 90/75

– KRASO BKP - Sealing Insert - telecommunication-

clamping range: 5 - 13 mm, 3 x 7 - 13 mm, 13 - 21 mm

- primary sealing + secondary sealing telecommunication

- casing pipe end plugs including

· end plug telecommunication - split-

· hose connection 90/75

– KRASO BKP - Sealing Insert - electricity + telecommunication -

clamping range: electricity 25 - 36 mm / telecommunication 2 x 5 - 10 mm, 3 x 7 - 14 mm

- primary sealing + secondary sealing electricity + telecommunication

- casing pipe end plugs including

· end plugs electricity + telecommunication

· hose connection 90/75

- a tube of lubricant

optionally available KRASO BKP Gas Installation Kits:

• Schuck DN 25 consistsing of primary and secondary sealing as well as gas end plug

• RMA DN 25 consisting of primary and secondary sealing as well as gas end plug

• Voigt DN 25 consisting of primary and secondary sealing as well as gas end plug

• Voigt DN 32 consisting of primary and secondary sealing as well as gas end plug

Downloads

Produktinformation

Produktinfo_KRASO_BKP_Boden_Box (7.94 MiB)

Prüfzeugnis

Prüfbericht_KRASO_BKP_Dichteinsatz (605.72 KiB)
Prüfbericht_KRASO_BKP_Boden (1.36 MiB)

Montageanleitung

Montageanleitung_KRASO_BKP_Boden_BOX (2.93 MiB)
montageanleitung_kraso_bkp_boden_installationsset (2.36 MiB)

DWG-Dateien

DWG_KRASO_BKP_Boden_BOX_4-fach (100.99 MiB)
DWG_KRASO_BKP_Boden_BOX_1-fach (42.05 MiB)
DWG_KRASO_BKP_Boden_BOX_2-fach (61.71 MiB)
DWG_KRASO_BKP_Boden_BOX_5-fach (120.6 MiB)
DWG_KRASO_BKP_Boden_BOX_3-fach (81.4 MiB)

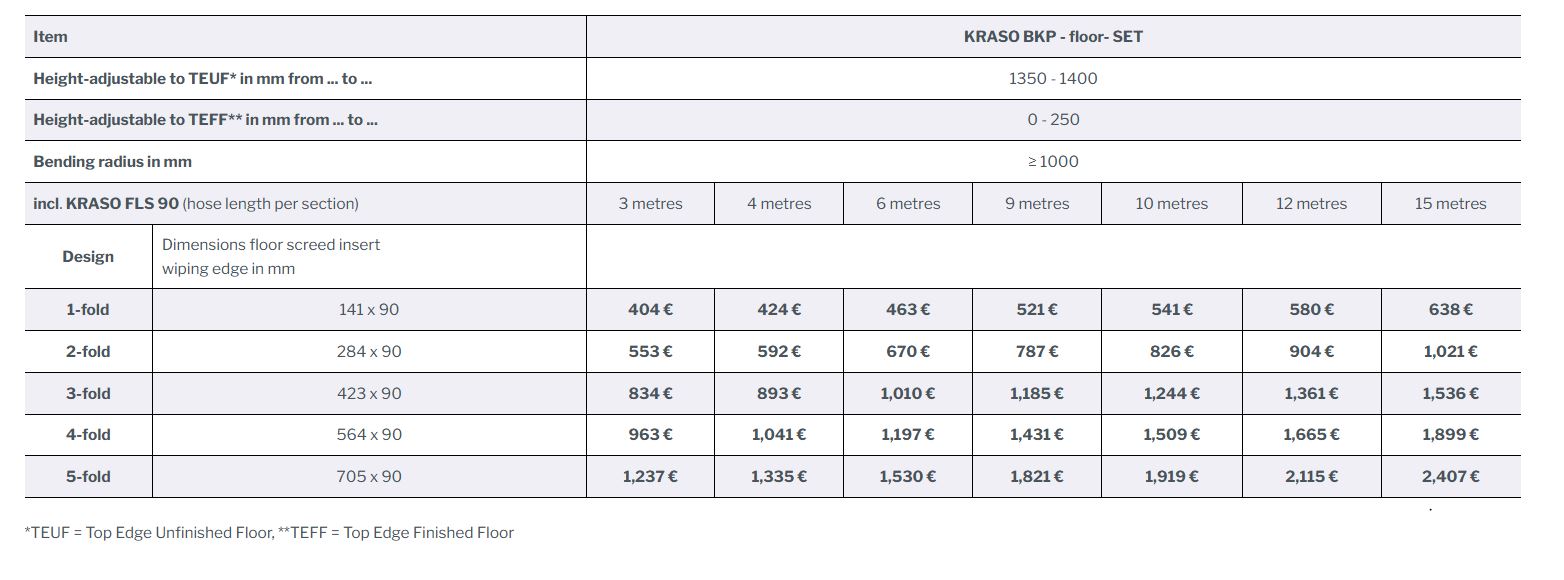

Type / Item		KRASO BKP - floor- SET
Height-adjustable to TEUF* in mm from ... to ...		1350 - 1400
Height-adjustable to TEFF** in mm from ... to ...		0 - 250
Bending radius in mm		≥ 1000
incl. KRASO FLS 90 (hose length per system)		3 metres	4 metres	6 metres	9 metres	10 metres	12 metres	15 metres
Design	Dimensions floor screed insert wiping edge in mm
1-fold	141 x 90	404 €	424 €	463 €	521 €	541 €	580 €	638 €
2-fold	284 x 90	553 €	592 €	670 €	787 €	826 €	904 €	1.021 €
3-fold	423 x 90	834 €	893 €	1.010 €	1.185 €	1.244 €	1.361 €	1.536 €
4-fold	564 x 90	963 €	1.041 €	1.197 €	1.431 €	1.509 €	1.665 €	1.899 €
5-fold	705 x 90	1.237 €	1.335 €	1.530 €	1.821 €	1.919 €	2.115 €	2.407 €

*TEUF = Top Edge Unfinished Floor, **TEFF = Top Edge Finished Floor

Downloads auf ausschreiben.de

KRASO Y-Wrench

Y-Wrench to open / close the KDS closure cover, available for KRASO Cable Penetration KDS 90 and KDS 150Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150 + With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

KRASO FLS - Flexible Empty Pipe System

flexible empty pipe-system as a cable protective hose for gas- and water tight connection to KRASO Cable Penetration KDS, over-pressures of 4,0 and 3,0 bar respectively, under-pressures of 0,7 and 0,5 bar respectively, heavy version for severe mechanical stresses, with a smooth interior for smooth cable pulling, and a smooth exterior for optimal sealing, flexible, enhanced pressure and vacuum resistance, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances)Appropriate accessories for KRASO Cable Penetration KDS and Cable Inlet Box KDS 150+ With the appropriate accessories KRASO Cable Penetration KDS 90 / KDS 150 and KRASO Cable Inlet Box System KDS 150 can be combined to a complete and individual system - as it is required for demanding construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!

Cable Inlet Box KDS 150 - special

bending radius approx. 200 cm, for the secure connection of supply lines like e.g. water - electricity - telecommunication into buildings without basement. With installation device, empty pipe extension 20 cm and water pressure tight surrounding KRASO 4 Seal and 2 KRASO KDS Closure Covers

KRASO Cable Inlet Box System KDS 150
