KRASO Builder’s Convenience Box - floor - garden

KRASO Builder’s Convenience Box - floor - garden - SET

single utility connection/outlet for electricity, water or telecommunication for buildings without basement incl. cable protective hose (DN 75, 10 metres), incl. installation kits for electricity + telecommunication | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E

For more convenience in the garden!

+ Choose the KRASO Builder’s Convenience Box - floor - garden - SET for any project in your garden or courtyard: lighting, pool, garden sauna, wall box etc.

+ For buidings without basement: simple and tight routing of electricity, water and telecommunication lines from the utility connection space to the garden!

+ KRASO 4 Seal: exterior sealing of concrete: 10 bar! Radon-tight! Resistant to methane gas!

+ Simple installation due to the stable installation device and visual check of the snap-on socket - helps to avoid installation errors!

+ For flush-mount installation in the base plate - no tripping hazards or wall damages! Including building period protective cover

+ Easy integration of vapour barrier foils due to the roughened trowel flange!

+ Height-adjustable base plate and floor screed

+ Combinable with KRASO Builder’s Convenience Box - floor - SET as utility connection!

+ Including KRASO BKP - Sealing Insert - electricity + telecommunication!

Clamping range: electricity 25 - 36 mm, telecommunication 2 x 5 - 10 mm, 3 x 7 - 14 mm

+ Optionally available KRASO BKP - Sealing Inserts:

KRASO BKP - Sealing Insert - electricity/water
KRASO BKP - Sealing Insert - telecommunication

+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E

Info

Scope of supply:

KRASO Builder’s Convenience Box - floor - garden - SET - 1-fold with cable protective hose (10 metres)

• foot

• foot extension

• pair of supporting bars

• height-adjustable base plate element 1-fold with gas- and water pressure tight KRASO 4 Seal, trowel flange, visual check of the snap-on socket and pre-installed building period installation cover

• height-adjustable KRASO BKP Floor Screed Insert with protective cover and lubricant

• height fixation for KRASO BKP Floor Screed Insert

• installation instructions KRASO Builder’s Convenience Box - floor - SET

• Installation kit including
- KRASO BKP - Sealing Insert - electricity + telecommunication -
clamping range: electricity 25 - 36 mm / telecommunication 2 x 5 - 10 mm, 3 x 7 - 14 mm
- primary sealing + secondary sealing for electricity + telecommunication
- casing pipe end plugs including
- end plugs for electricity + telecommunication

- hose connection 80

- a tube of lubricant

Downloads

KRASO Bauherren-Komfortpaket - Boden - Garten - BOX

Montageanleitung KRASO BKP Boden Garten BOX

Produktinfo KRASO BKP - Boden - Garten - BOX

Prüfbericht KRASO Vierstegdichtung

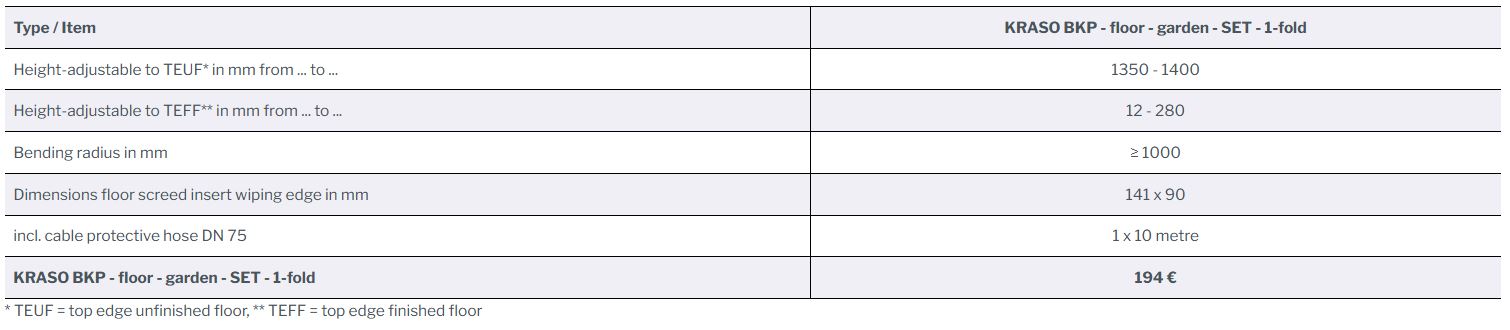

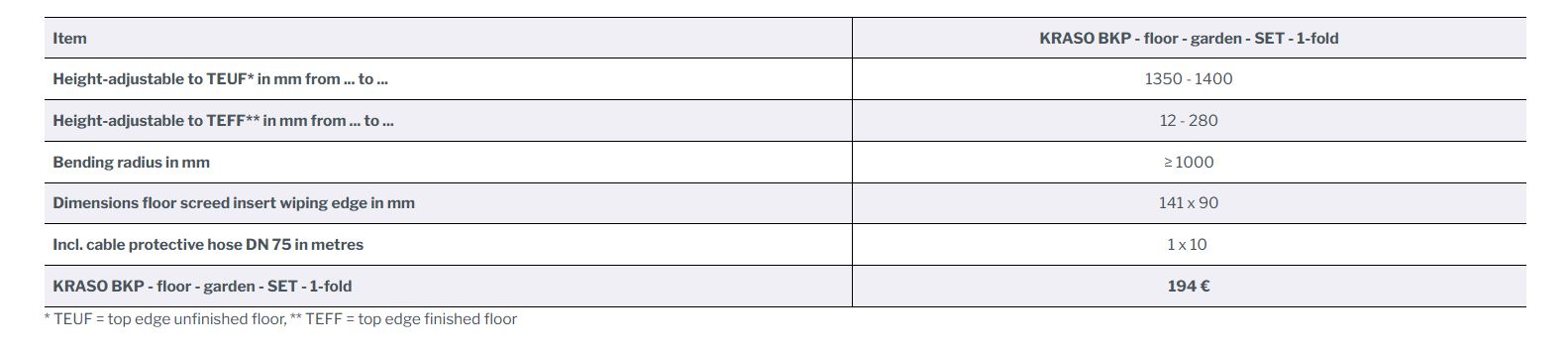

Type / Item	KRASO BKP - floor - garden - SET - 1-fold
Height-adjustable to TEUF* in mm from ... to ...	1350 - 1400
Height-adjustable to TEFF** in mm from ... to ...	12 - 280
Bending radius in mm	≥ 1000
Dimensions floor screed insert wiping edge in mm	141 x 90
incl. cable protective hose DN 75	1 x 10 metre
KRASO BKP - floor - garden - SET - 1-fold	194 €

* TEUF = top edge unfinished floor, ** TEFF = top edge finished floor
