KRASO Builder's Convenience Box - floor - 150
KRASO Builder's Convenience Box - floor - 150
single utility connection for supply lines, for buildings without basement, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1-E
The safe utility connection for larger media lines
+ The safe utility connection for larger media lines for buildings without basement, e.g. electricity or water for residential buildings or commercial buildings
+ Usable with KRASO Sealing Insert with large flange as utility connection entry or outlet: e.g. for charging stations in residential buildings (flat ownership modernisation law - WEMoG)
+ With water pressure tight surrounding KRASO 4 Seal: exterior sealing of concrete: 10 bar!
+ Radon-tight
+ Stable installation device incl. rigid empty pipe with bending radius from 1000 mm
+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period protection cover
+ Including empty pipe insert (25 cm, internal diameter: 150 mm) for a flexible floor construction
+ Internal installation of media lines via KRASO Sealing Inserts: various designs with stepless onion ring technology
+ External optional connection possibilities: connection to KRASO FLS, cable protective hoses DN 110 or DN 160 or KG empty pipe systems with DN 160
+ Optionally available: KRASO Trowel Flange
+ DafStB waterproof concrete guideline: stress class 1 + 2
Info
Scope of supply:
rigid empty pipe 150 incl. stable installation device, empty pipe insert ID150, approx. 25 cm, KRASO Sealing Insert with large flange for the installation in KRASO Empty Pipe Insert, KRASO System Cover for the connection of on-site empty pipe
Downloads
KRASO Bauherren-Komfortpaket - Boden - 150
|

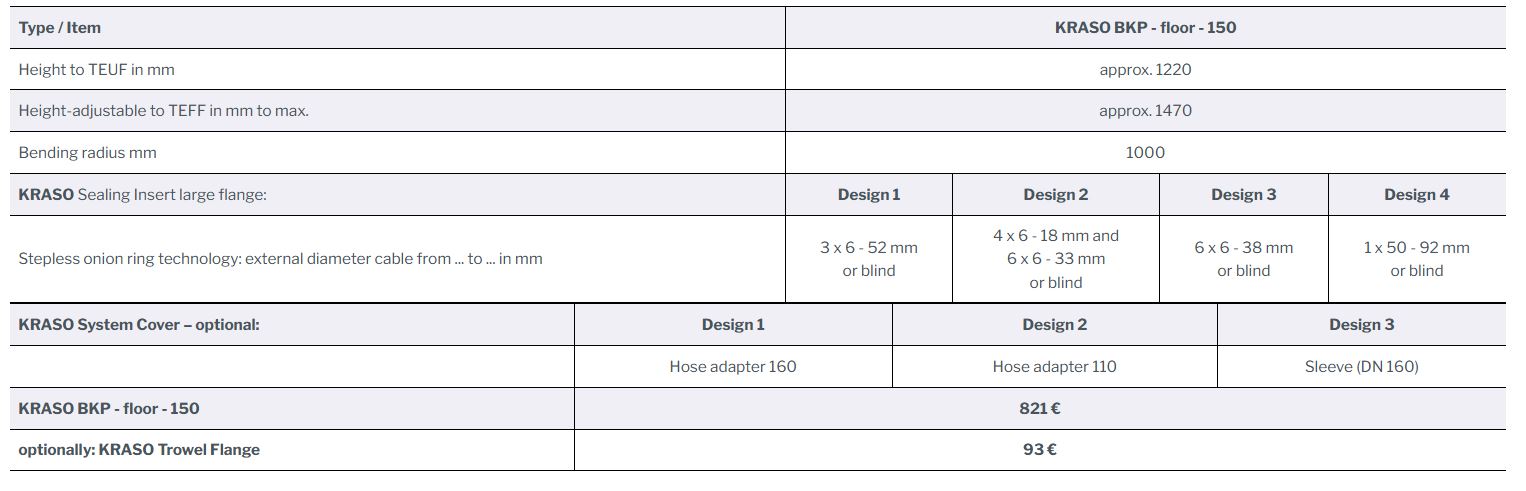

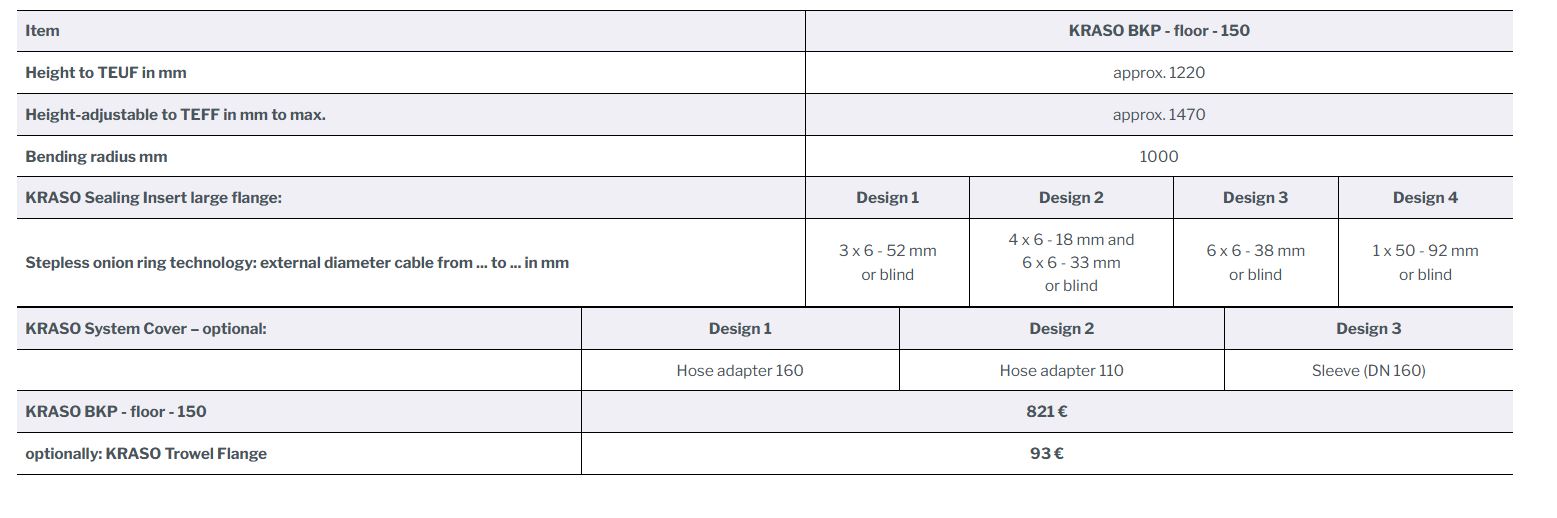

Type / Item |
KRASO BKP - floor - 150 |
|||
|
Height to TEUF in mm |
approx. 1220 |
|||
|
Height-adjustable to TEFF in mm to max. |
approx. 1470 |
|||
|
Bending radius mm |
1000 |
|||
|
KRASO Sealing Insert large flange: |
Design 1 |
Design 2 |
Design 3 |
Design 4 |
|
Stepless onion ring technology: external diameter cable from ... to ... in mm |
3 x 6 - 52 mm |
4 x 6 - 18 mm and |
6 x 6 - 38 mm |
1 x 50 - 92 mm |
|
KRASO System Cover – optional: |
Design 1 |
Design 2 |
Design 3 |
|
Hose adapter 160 |
Hose adapter 110 |
Sleeve (DN 160) |
|
|
KRASO BKP - floor - 150 |
821 € |
||
|
optionally: KRASO Trowel Flange |
93 € |
||
KRASO Builder‘s Convenience Box - floor - SET
multi utility connection for supply lines (gas, water, electricity, telecommunication) for buildings without basement incl. KRASO FLS 90, incl. installation kits for electricity/water (2 x), telecommunication, electricity + telecommunication as standard configuration for KRASO BKP - floor - SET - 4-fold, desired configuration for the KRASO BKP
- floor - SET - 3-fold, 2-fold, 1-fold, KRASO BKP Gas Installation Kits are optionally available | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -EThe multi utility connection with integrated installation kit+ The convenient solution for builders: safe and tight installation of gas, water, electricity and telecommunication lines into buildings without basement!+ DVGW-certified according to VP 601:
overall system is gas- and water pressure tight up to 1 bar! Gas- and odour-tight – high-quality in terms of TA-Air+ Radon-tight! Resistant to methane gas!+ KRASO 4 Seal, exterior sealing of concrete: 10 bar! Overall system in gas- and water pressure tight up to 1 bar!+ Simple installation due to stable installation device and visual check of the snap-on-socket - helps to avoid installation errors+ Hose diameter: external 90 mm - internal 80 mm+ With integrated installation kit: ready-assembled components for the utility connection of electricity, water and telecommunication lines, including floor screed insert and height fixation. No need to pass on the installation kit to other installers+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period installation cover+ Easy integration of vapour barrier foils due to the roughened trowel flange!
+
Height-adjustable base plate as well as floor screed
+ KRASO BKP Gas Installation Kits optionally available!+ Split end plugs for easy installation+ Including extension set+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
KRASO Builder´s Convenience Box - floor - 110
KRASO Builder's Convenience Box (BKP) - floor - 110 - 1-fold, single utitility connection for supply lines (heat pump, local/district/geothermal heating, gas, water or electricity) for buildings without basement, incl. KRASO FLS 110 | DafStB waterproof concrete guideline: stress class 1 + 2 The flexible utility connection for heat pumps, local, district or geothermal heating, gas, water or electricity+ The secure utility connection for heat pumps for buildings without basement: • KRASO Builder´s Convenience Box - floor - 110 for water-to-water heat pumps and brine-water-heat pumps (probe and collector) • KRASO Builder´s Convenience Box - floor - 110 - SWP for air-to-water heat pump (split)+ Flexible: also usable for configuring with local, district or geothermal piping systems, gas, water or electricity up to DN 50+ With water pressure tight surrounding KRASO 4 Seal: exterior sealing of concrete: 10 bar!+ Radon tight!+ Hose diameter: external 110 mm - internal 100 mm!+ Stable installation device with foot extension for a save position and an easy installation+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period protection cover+ Incl. empty pipe insert (25 cm, internal diameter: 100 mm) for a flexible floor construction+ Incl. Flexible Empty Pipe System KRASO FLS 110 (internal diameter: 100 mm): bending radius 1000 mm. Incl. hose connection 110 and end plug+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
KRASO Cable Inlet Box System KDS 150
for the installation of cables and utility lines such as e.g. water - electricity - telecommunication etc. in buildings without basement. Attention: do not use a KRASO System Sealing Insert KDS 150 for the sealing of media lines, but use KRASO Sealing Inserts instead! | DafStB waterproof concrete guideline: stress class 1 + 2, with optional trowel flange DIN 18533 W1 -EThe flexible system for industry and commercial buildings+ The secure and reliable way for the installation of cables and pipes right into buildings: with a radius of 650 mm or 1000 mm, main pipes and cable protective hoses can be connected at a 90-degree angle to buildings without basement+ KRASO Cable Penetration System KDS 150: flexible and combinable in various ways+ The KRASO Cable Inlet Box System KDS 150 can be expanded to any number of rows thanks to the plug-in system - depending on your requirements!+ For the installation of cables and pipes such as water, electricity, telecommunication etc. into buildings without a basement: the perfect solution for industrial and commercial buildings!+ Sealing of the base plate by water pressure tight surrounding KRASO 4 Seal+ With stable installation device for correct positioning before concreting+ Flexible plug-in possibilities on the outer side using KRASO Cable Penetration System KDS 150+ Additional media pipe sealing from the inside using KRASO Sealing Inserts+ Included in the scope of supply: KRASO KDS 150 Empty Pipe Insert with bayonet fitting for a floor construction with floor heating, insulation and screed+ DafStB waterproof concrete guideline: stress class 1 + 2, with optional trowel flange DIN 18533 W1 -E
