KRASO BKP - Sealing Inserts

BKP Sealing Insert

electricity/water

telecommunciation

electricity + telecommunication

KRASO BKP - Sealing Inserts

installation kits for KRASO Builder's Convenience Box - floor - SET and KRASO Builder's Convenience Box - wall, wall - NFE and wall - ESH: electricity/water, telecommunication, electricity + telecommunication. Tested in accordance with DVGW!

Sealing Insert including

Primary sealing electricity/water for internal installation of the electricity cable or water pipeline. Clamping range: 26 - 50 mm
Secondary sealing electricity/water for internal installation of electricity cable or water pipeline

Casing pipe end plug (optional) including

End plug electricity/water - split - for external installation of electricity cable or water pipeline
Hose connection 90/75 for KRASO BKP - floor - SET for the connection with the casing pipe and fitting of the end plug for electricity/water - split -
Hose connection 80 for KRASO BKP - wall for the connection with the casing pipe and fitting of the end plug for electricity/water - split -

Info

Scope of supply:

as an installation kit for electricity/water, KRASO BKP - Sealing Insert, including primary sealing and secondary sealing, optionally available casing pipe end plugs including end plug and hose connection 90/80 (floor) or hose conncetion 80 (wall)

Downloads

KRASO BKP - Dichteinsätze

Montageanleitung KRASO BKP Boden BOX Installationsset

Montageanleitung KRASO BKP Wand ESH

Produktinfo KRASO BKP - Dichteinsätze

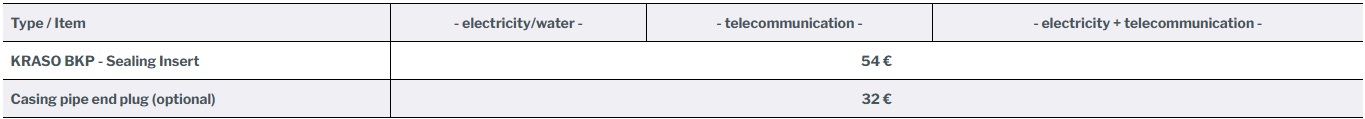

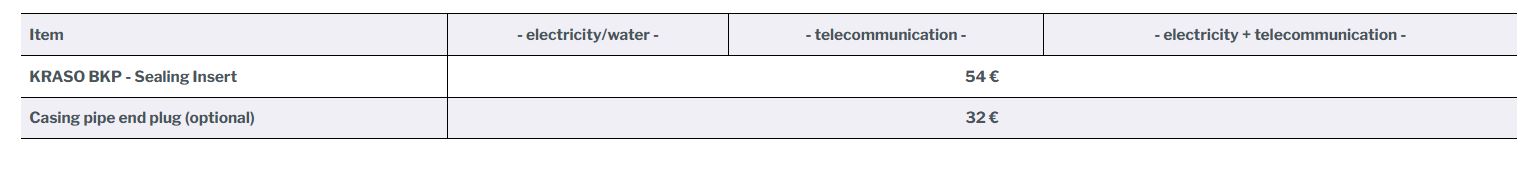

Type / Item	- electricity/water -	- telecommunication -	- electricity + telecommunication -
KRASO BKP - Sealing Insert	54 €
Casing pipe end plug (optional)	32 €
