KRASO BKP Gas Installation Kits
KRASO BKP Gas Installation Kits

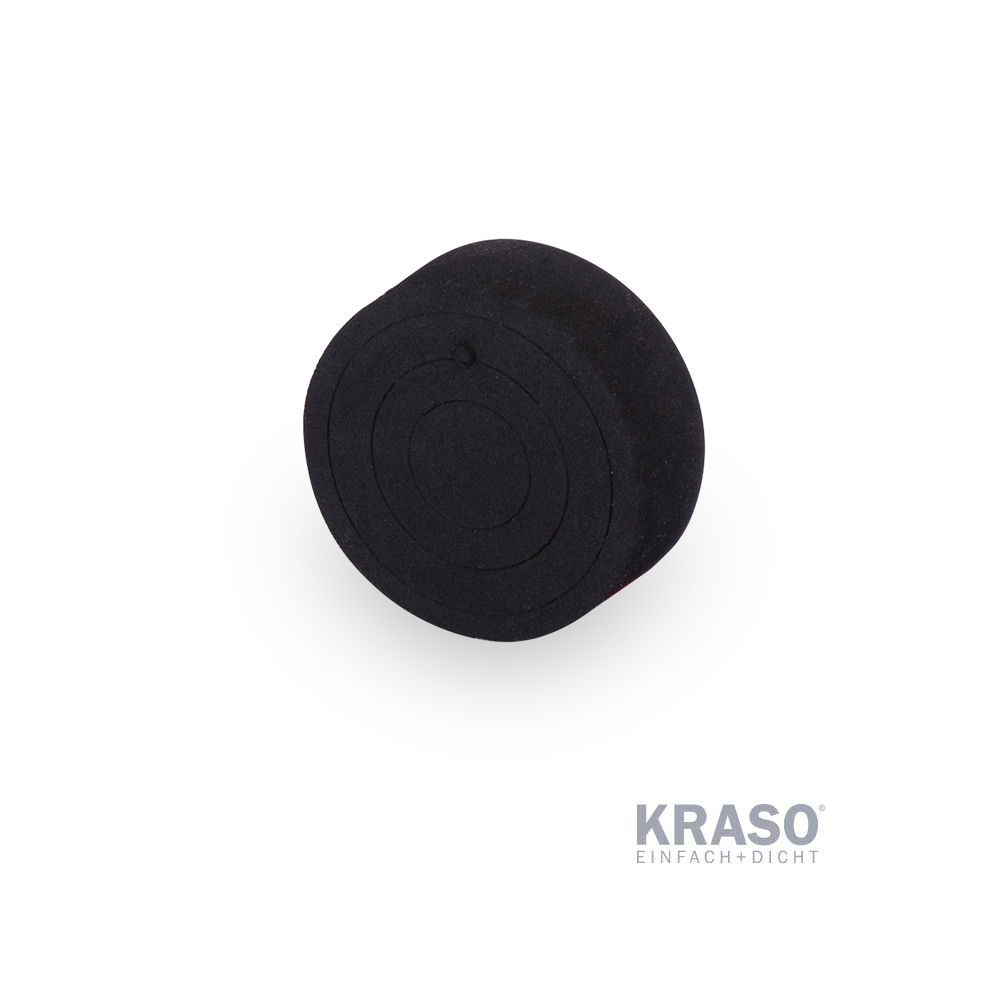

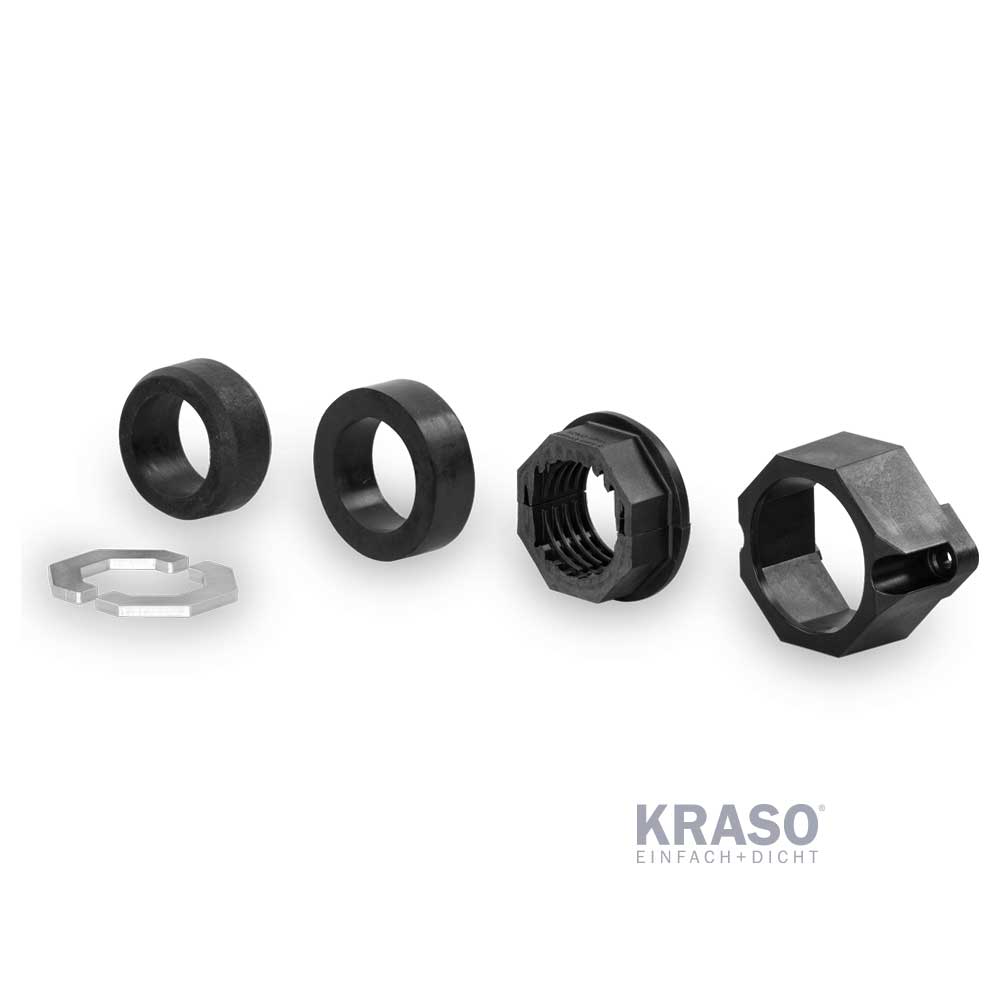

for anti-twist and tear-off protection of gas utility connections, according to DVGW VP 601, incl. primary and secondary sealing elements, gas end plug and self-cutting screws
Info
Scope of supply:
KRASO BKP Gas Installation Kit
KRASO BKP Gas Installation Kit
|

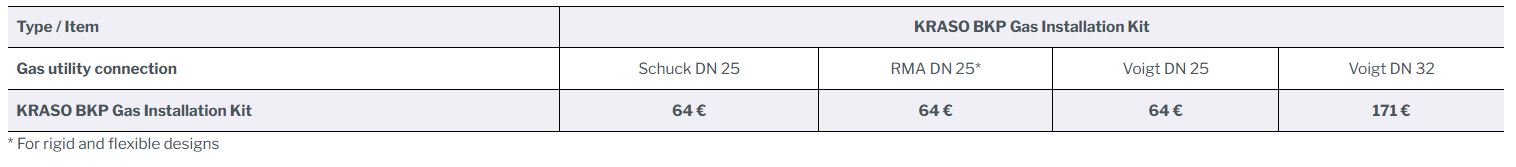

Type / Item |
KRASO BKP Gas Installation Kit |
|||
|
Gas utility connection |
Schuck DN 25 |
RMA DN 25* |
Voigt DN 25 |
Voigt DN 32 |
|
KRASO BKP Gas Installation Kit |
64 € |
64 € |
64 € |
171 € |
KRASO Builder‘s Convenience Box - floor - SET
multi utility connection for supply lines (gas, water, electricity, telecommunication) for buildings without basement incl. KRASO FLS 90, incl. installation kits for electricity/water (2 x), telecommunication, electricity + telecommunication as standard configuration for KRASO BKP - floor - SET - 4-fold, desired configuration for the KRASO BKP
- floor - SET - 3-fold, 2-fold, 1-fold, KRASO BKP Gas Installation Kits are optionally available | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -EThe multi utility connection with integrated installation kit+ The convenient solution for builders: safe and tight installation of gas, water, electricity and telecommunication lines into buildings without basement!+ DVGW-certified according to VP 601:
overall system is gas- and water pressure tight up to 1 bar! Gas- and odour-tight – high-quality in terms of TA-Air+ Radon-tight! Resistant to methane gas!+ KRASO 4 Seal, exterior sealing of concrete: 10 bar! Overall system in gas- and water pressure tight up to 1 bar!+ Simple installation due to stable installation device and visual check of the snap-on-socket - helps to avoid installation errors+ Hose diameter: external 90 mm - internal 80 mm+ With integrated installation kit: ready-assembled components for the utility connection of electricity, water and telecommunication lines, including floor screed insert and height fixation. No need to pass on the installation kit to other installers+ For flush-mount installation in the base plate - no tripping hazards, no wall damages! Including building period installation cover+ Easy integration of vapour barrier foils due to the roughened trowel flange!
+
Height-adjustable base plate as well as floor screed
+ KRASO BKP Gas Installation Kits optionally available!+ Split end plugs for easy installation+ Including extension set+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1.1 -E
KRASO Builder´s Convenience Box - wall
multi utility connection for supply lines (gas, water, electricity, telecommunication) for buildings with basement, KRASO BKP Gas Installation Kits optionally available | DafStB waterproof concrete guideline: stress class 1 + 2, DIN18533 W1 -E and W2.1 -E Multi utility connection for buildings with basement: gas, water, electricity and telecommunication+ DVGW-certified according VP 601: complete system is gas- and water pressure tight up to 1 bar!+ For core drilling and casing DN 200 (199 - 203 mm). For precast walls and in-situ concrete walls!+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm+ Tight in waterproof concrete structures with stress class 1 (permanently or temporarily pressing water)+ Radon tightness IAF tested - meets the requirements for radon precautionary areas according to FHRK leaflet MB 101! Resistant to methane gas!+ Torque Control Nut KRASO DKM: integrated torque limiter - no torque wrench required!+ Split end plugs for easy installation!+ Ready for the network connection of gas, water, electricity and telecommunication: tested in accordance with DVGW! Including KRASO BKP - Sealing Inserts for electricity/water, telecommunication, electricity + telecommunication+ Optionally available KRASO BKP Gas Installation Kits:
• gas utility connection Schuck DN 25
• gas
utility
connection RMA DN 25 • gas
utility
connection Voigt DN 25 • gas
utility
connection Voigt DN 32+ Including KRASO BKP - wall - Extension Set!+ DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E

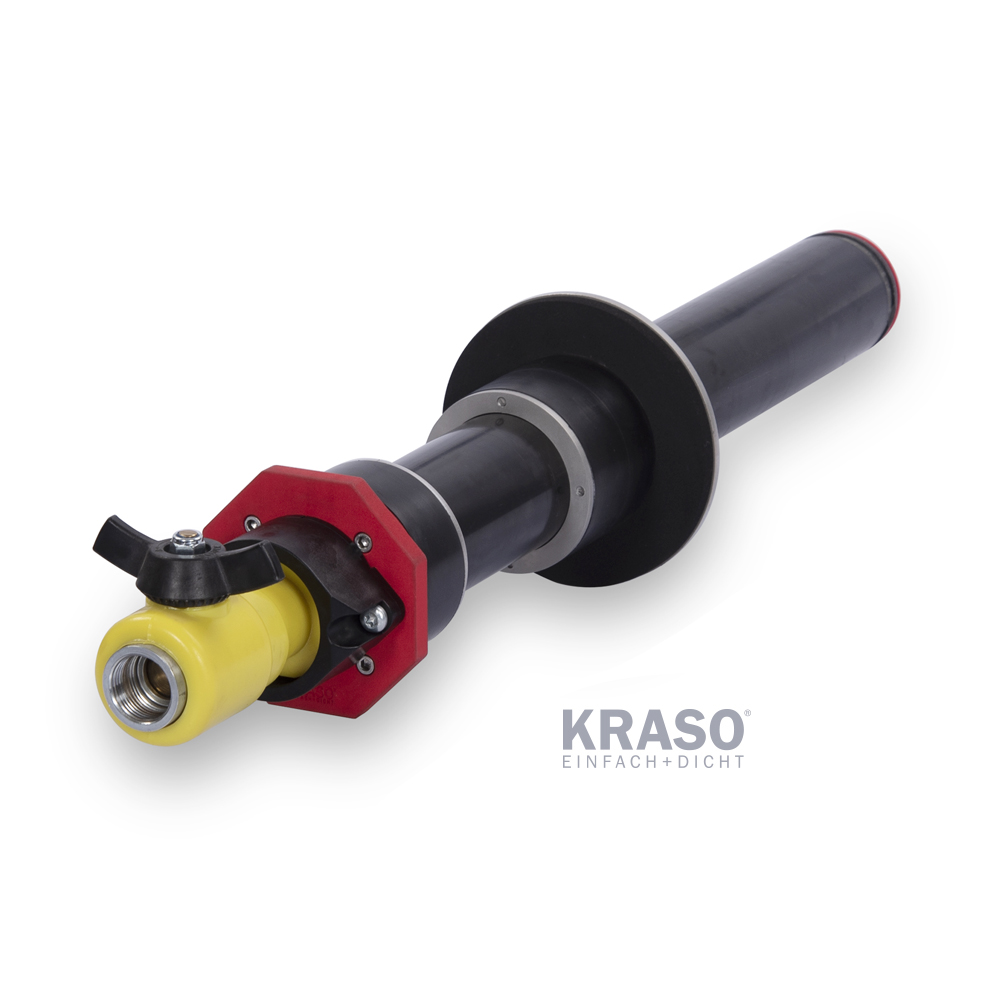

KRASO Builder´s Convenience Box - wall - ESH
single utility connection for supply lines (gas, water, electricity or telecommunication) for buildings with basement, incl. extension set | DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -EConvenient, safe, tight connection to the network - gas, water, electricity or telecommunication+ Simple and safe single utility connection for new buildings or rehabilitation for buildings with basement+ Flexible installation: gas, water, electricity or telecommunication - including a suitable installation/mounting set+ Double installation possible: electricity and telecommunication!+ DVGW-certified according to VP 601: complete system is gas- and water pressure tight up to 1 bar!+ For core drilling and casing DN 100 (99 - 103 mm). For precast walls and in-situ concrete walls!+ For wall thicknesses from 160 - 500 mm+ Tight in waterproof concrete structures with stress class 1 (permanently or temporarily pressing water)+ External sealing element with sealing flange according to DIN 18533! Seal width: 80 mm+ Radon tightness IAF tested - according to FHRK leaflet MB 101! Resistant to methane gas!+ Gas and odour-tight - high-quality in terms of TA-Air!+ Split end plugs for easy installation!+ Including extension set
+
DafStB waterproof concrete guideline: stress class 1 + 2, DIN 18533 W1 -E and W2.1 -E
KRASO BKP - Sealing Inserts
installation kits for KRASO Builder's Convenience Box - floor - SET and KRASO Builder's Convenience Box - wall, wall - NFE and wall - ESH: electricity/water, telecommunication,
electricity +
telecommunication. Tested in accordance with DVGW! Sealing Insert includingPrimary sealing electricity/water for internal installation of the electricity cable or water pipeline. Clamping range: 26 - 50 mmSecondary sealing electricity/water for internal installation of electricity cable or water pipelineCasing pipe end plug (optional) including End plug electricity/water - split - for external installation of electricity cable or water pipelineHose connection 90/75 for KRASO BKP - floor - SET for the connection with the casing pipe and fitting of the end plug for electricity/water - split - Hose connection 80 for KRASO BKP - wall for the connection with the casing pipe and fitting of the end plug for electricity/water - split -
KRASO Y-Wrench
Y-Wrench to open / close the KDS closure cover, available for KRASO Cable Penetration KDS 90 and KDS 150Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box System KDS 150
+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
KRASO FLS - Flexible Empty Pipe System
flexible empty pipe-system as a cable protective hose for gas- and water tight connection to KRASO Cable Penetration KDS, over-pressures of 4 and 3 bar, under-pressures of 0,7 and 0,5 bar , heavy design for high mechanical load, smooth interior for smooth cable pulling, smooth exterior for optimal sealing, flexible, enhanced resistance against pressure and vacuum, high axial resistance, resistant to alkalis and acids, resistant to brine and sea water, good UV and ozone resistance, gas-tight and liquid-tight, RoHS-compliant (Restriction of Hazardous Substances)Appropriate accessories for KRASO Cable Penetration KDS + Cable Inlet Box KDS 150+ With the appropriate accessories, KRASO Cable Penetration KDS 90 / KDS 150 as wall penetrations and KRASO Cable Inlet Box System KDS 150 can be combined to a complete individual system - as it is required for challenging construction projects.+ Our experts are happy to assist you regarding the numerous possibilities - even on your construction site!
