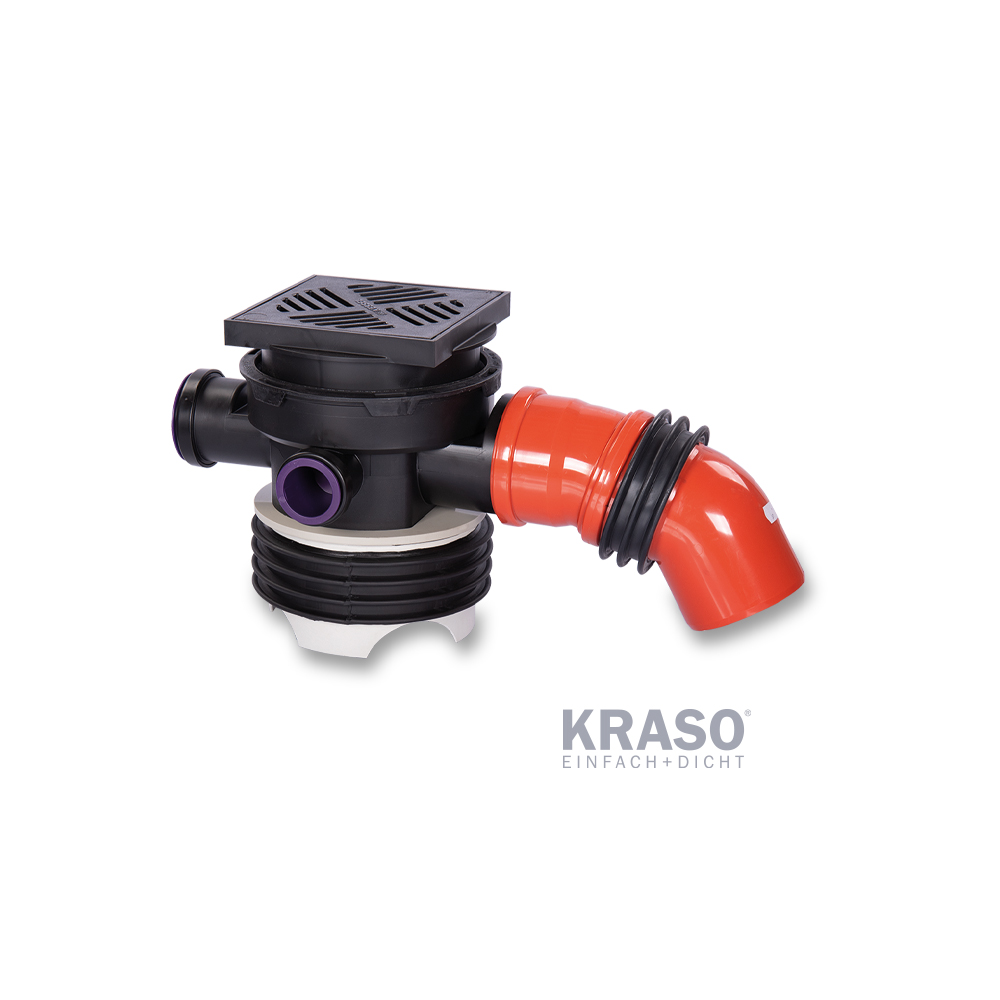

KRASO Basement Drain
KRASO Basement Drain
for installation in areas without traffic and for the connection of 3 intake pipes, for the drainage of grey water, drainage capacity: 1,8 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal, lateral KRASO Drainage Bows DN 110 with KRASO 3 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
For a dry basement
+ KRASO Basement Drain with integrated removable backwater and odour stopper!
+ For the connection of up to 3 intake pipes!
+ Drainage capacity: 1,8 l per second!
+ With height-adjustable insert frame from 30 to 60 mm.
+ Either with plastic or stainless steel grate.
+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
+ Also available as KG 2000 made of polypropylene (PP), mineral- filled, smooth walls, long-lasting.
+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
Info
Scope of supply:

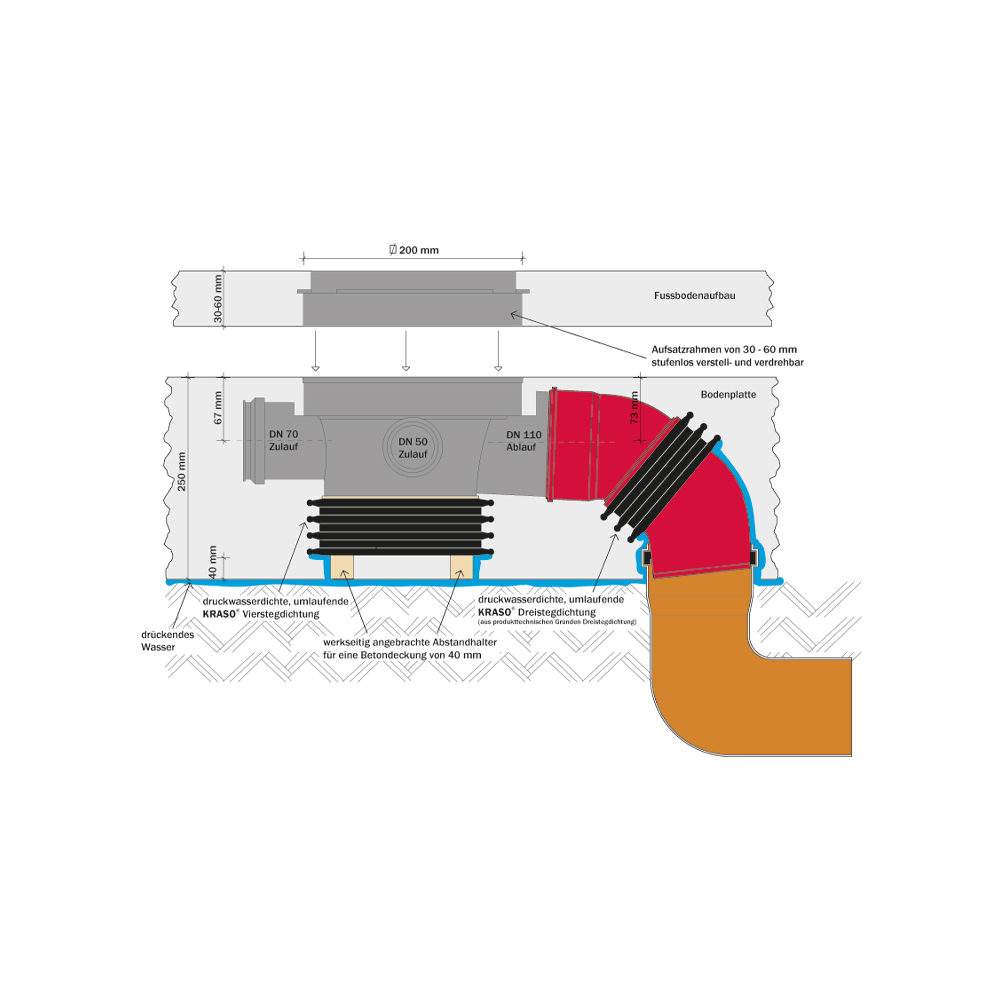

KRASO Basement Drain with removable backwater stopper, integrated odour stopper, sludge trap filter and insert frame which can be telescopically rotated and is height-adjustable from 30 to 60 mm, 2 intakes DN 50, 1 intake DN 70, all intakes and drains either for KG, HT or KG 2000 pipes, with black plastic or stainless steel slot grate 20x20 cm, class K3 • KRASO Basement Drain with foil flange, with removable backwater stopper, integrated odour stopper, sludge trap filter and insert frame which can be telescopically rotated and is height-adjustable from 30 to 60 mm, 2 intakes DN 50, 1 intake DN 70, all intakes and drains either for KG, HT or KG 2000 pipes, with black plastic or stainless steel slot grate 20 x 20 cm, class K3
KRASO Basement Drain with removable backwater stopper, integrated odour stopper, sludge trap filter and insert frame which can be telescopically rotated and is height-adjustable from 30 to 60 mm, 2 intakes DN 50, 1 intake DN 70, all intakes and drains either for KG, HT or KG 2000 pipes, with black plastic or stainless steel slot grate 20x20 cm, class K3 • KRASO Basement Drain with foil flange, with removable backwater stopper, integrated odour stopper, sludge trap filter and insert frame which can be telescopically rotated and is height-adjustable from 30 to 60 mm, 2 intakes DN 50, 1 intake DN 70, all intakes and drains either for KG, HT or KG 2000 pipes, with black plastic or stainless steel slot grate 20 x 20 cm, class K3
Downloads
Produktinformation
Datenblatt
Prüfzeugnis
DWG-Dateien
-
Produktinfo_KRASO_Kellerablauf (1.37 MiB)
-
Wartungs_Prüfanleitung_KRASO_Kellerablauf (1.35 MiB)
-
Prüfbericht_KRASO_Vierstegdichtung (606.1 KiB)
-
Prüfbericht_KRASO_Vierstegdichtung_PVC (310.56 KiB)
-
DWG_KRASO_Kellerablauf (1.44 MiB)
|
Type / Item |
KRASO Basement Drain with plastic grate |
KRASO Basement Drain with stainless steel grate |
|
Drainage capacity |
1,8 l/s |
|
|
Height |
drain approx. 250 mm |
|
|
Insert frame |
from 30 - 60 mm can be rotated and is fully height-adjustable |
|
|
Slot grate |
class K3, 20 x 20 cm, plastic (black) |
class K3, 20 x 20 cm, stainless steel |
|
Connection |
3 intake pipes: 2 x DN 50, 1 x DN 70, either for KG, HT or KG 2000 - pipes |
|
