KRASO Basement Drain for KG 2000
KRASO Basement Drain for KG 2000
for installation in areas without traffic and for the connection of up to 3 intake pipes, for the drainage of grey water, drainage capacity: 1,8 l/s, with water pressure tight surrounding, thermally welded KRASO 4 Seal, lateral KRASO Drainage Bows DN 110 with KRASO 3 Seal. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
For a dry basement
+ KRASO Basement Drain with integrated, removable backwater and odour stopper!
+ For the connection of up to 3 intake pipes
+ Drainage capacity: 1,8 l per second!
+ With height adjustable and rotatable insert frame from 30 to 60 mm
+ Either with plastic or stainless steel grate
+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
+ Also available in KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting
+ DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
Info
Scope of supply:
KRASO Basement Drain for KG 2000 with removable backwater stopper, integrated odour stopper, sludge trap filter and insert frame (telescopically height-adjustable from 30 to 60 mm and rotatable), two intakes DN 50, one intake DN 70, all intakes and drains either for KG, HT or KG 2000 pipes, with slot grate 20 x 20 cm made of black plastic or stainless steel, class K3 • KRASO Basement Drain for KG 2000 with foil flange with removable backwater stopper, integrated odour stopper, sludge trap filter and insert frame (telescopically height-adjustable from 30 to 60 mm and rotatable), two intakes DN 50, one intake DN 70, all intakes and drains either for KG, HT or KG 2000 pipes, with slot grate 20 x 20 cm made of black plastic or stainless steel, class K3
KRASO Basement Drain for KG 2000 with removable backwater stopper, integrated odour stopper, sludge trap filter and insert frame (telescopically height-adjustable from 30 to 60 mm and rotatable), two intakes DN 50, one intake DN 70, all intakes and drains either for KG, HT or KG 2000 pipes, with slot grate 20 x 20 cm made of black plastic or stainless steel, class K3 • KRASO Basement Drain for KG 2000 with foil flange with removable backwater stopper, integrated odour stopper, sludge trap filter and insert frame (telescopically height-adjustable from 30 to 60 mm and rotatable), two intakes DN 50, one intake DN 70, all intakes and drains either for KG, HT or KG 2000 pipes, with slot grate 20 x 20 cm made of black plastic or stainless steel, class K3
Downloads
|

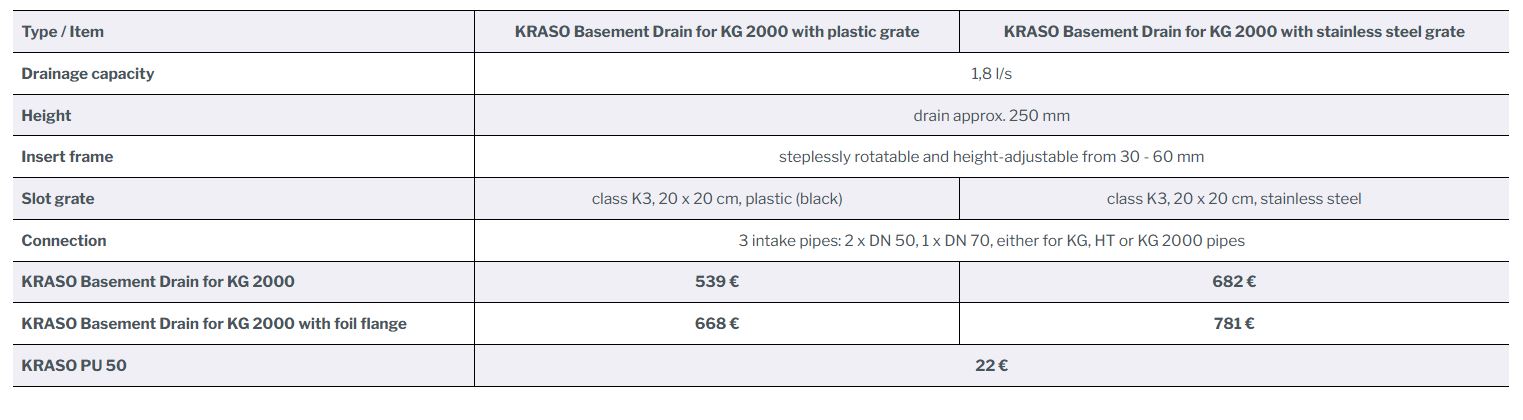

Type / Item |
KRASO Basement Drain for KG 2000 with plastic grate |
KRASO Basement Drain for KG 2000 with stainless steel grate |
|
Drainage capacity |
1,8 l/s |
|
|
Height |
drain approx. 250 mm |
|
|
Insert frame |
steplessly rotatable and height-adjustable from 30 - 60 mm |
|
|
Slot grate |
class K3, 20 x 20 cm, plastic (black) |
class K3, 20 x 20 cm, stainless steel |
|
Connection |
3 intake pipes: 2 x DN 50, 1 x DN 70, either for KG, HT or KG 2000 pipes |
|
|
KRASO Basement Drain for KG 2000 |
539 € |
682 € |
|

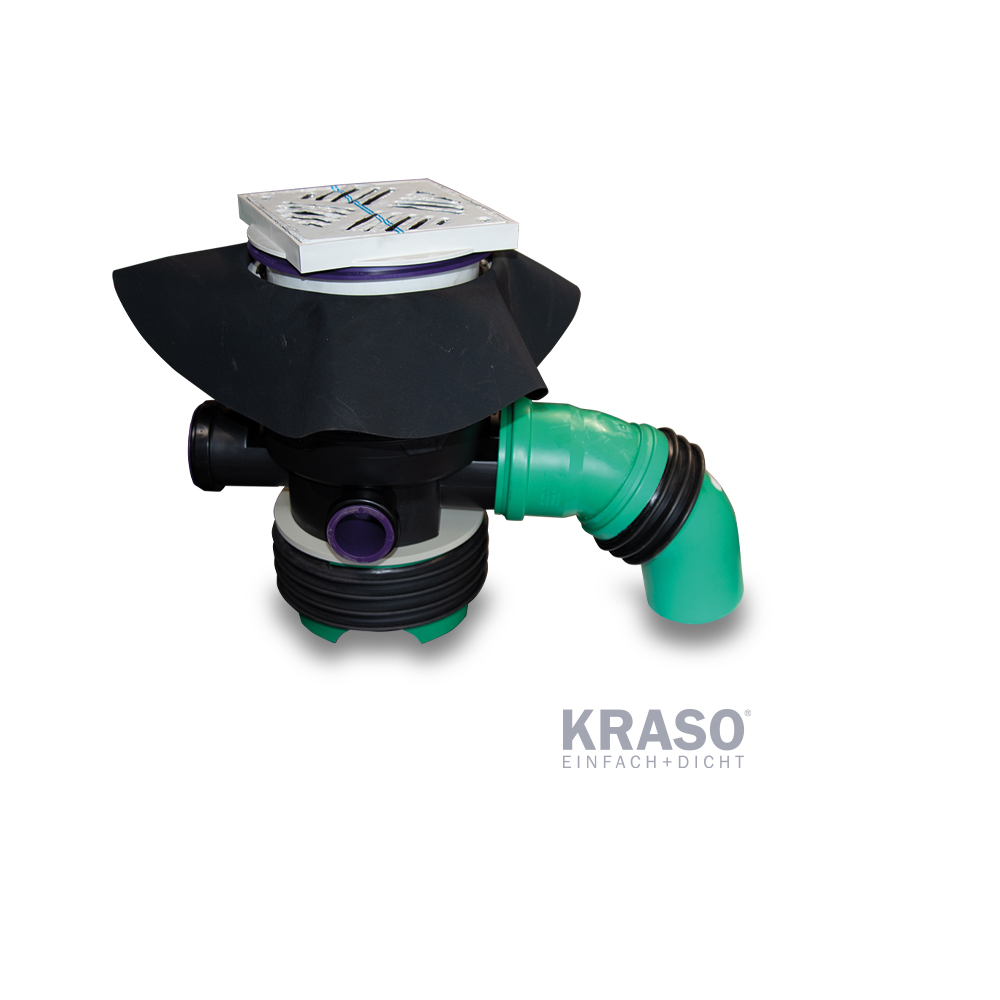

KRASO Basement Drain for KG 2000 with foil flange |
668 € |
781 € |
|
KRASO PU 50 | 22 € |
|
KRASO Basement Drain
for the installation in areas without traffic and for the connection of up to 3 intake pipes. Also available with KRASO Foil Flange, oil- and bitumen resistant (d = approx. 50 cm). For the integration of the foil flange we recommend our adhesive and sealant KRASO PU 50. | DafStB waterproof concrete guideline: stress class 1 + 2, with foil flange DIN 18533 W1-E
For a dry basement
+ KRASO Basement Drain with integrated, removable backwater and odour stopper!
+ For the connection of up to 3 intake pipes+ Drainage capacity: 1,8 l per second!
+ With height-adjustable and rotatable insert frame from 30 to 60 mm+ Either with plastic or stainless steel grate+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!
+ Also available in KG 2000: made of polypropylene (PP), mineral- filled, smooth walls, long-lasting
+ DafStB waterproof concrete guidline: Stress class 1 + 2, with foil flange DIN 18533 W1-E
KRASO Yard-/Parking Level Drain
for installation in areas with trafficThe high-performance drain for e.g. underground car parks
+ KRASO Yard-/Parking Level Drain with 4,3 l/s drainage capacity according to DIN EN 1253+ With frost proof odour barrier and removable sand trap basket+ Load class A up to 1,5 t or load class B up to 12,5 t+ Connection either for KG/HT or KG 2000 pipes DN 110+ With water pressure tight surrounding, thermally welded KRASO 4 Seal: water pressure tight up to 10 bar!+ DafStB waterproof concrete guideline: stress class 1 + 2, with flange DIN 18533 W1-E
KRASO PU 50
high-quality, permanently elastic and strong PU-sealant, also usable on moist surfaces, recommended for all products with KRASO Foil Flange, colour black, 290 ml cartridge for cartridge press
KRASO Drains - Accessories
accessories for KRASO Drains + KRASO Basement Drain insert frame extension+ KRASO Yard-/Parking Level Drain Type 1,5 insert frame extension
