KRASO 15°| 30°| 45° Bend
KRASO 15°| 30°| 45° Bend
according DIN EN 1401, for installation in waterproof concrete walls for the connection to KG/HT pipes, with water pressure tight surrounding KRASO 4 Seal and formed plug-in sleeve on one side
| DafStB waterproof concrete guidline: Stress class 1 + 2
Pipe Penetrations with KRASO 4 Seal
+ The surrounding KRASO 4 Seal is joined to the pipe penetration force-fit this prevents creep or slippage. Due to the special geometry our KRASO 4 Seal produces a grip with the concrete.
+ Altogether this results in a water pressure tightness up to 10 bar - MPA-tested! The KRASO 4 Seal also protects against the naturally occuring nobel gas radon and by this prevents a concentration of the radioactive gas in indoor spaces.
+ All pipe penetrations are also available as KG 2000 with thermally welded KRASO 4 Seal.
+ DafStB waterproof concrete guidline: Stress class 1 + 2
Info
Scope of supply:
KRASO Bend
KRASO Bend
Downloads
Produktinformation
Datenblatt
DWG-Dateien
-
Produktinfo_KRASO_Bogen (671.52 KiB)
-
Datenblatt_KRASO_Typ_Bogen_zv (248.86 KiB)
-
DWG_KRASO_Bogen_45°_DN_400 (358.65 KiB)
|

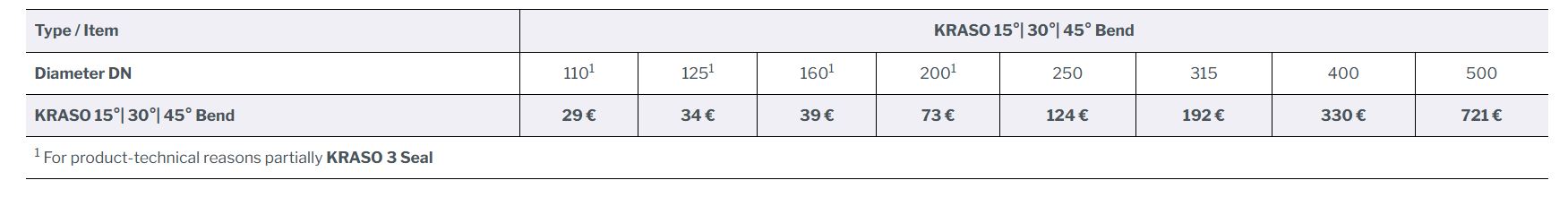

Type / Item |
KRASO 15°| 30°| 45° Bend |
|||||||
|
Diameter DN |
1101 |
1251 |
1601 |
2001 |
250 |
315 |
400 |
500 |
|
1 for product-technical reasons partially KRASO 3 Seal |
||||||||
KRASO Wall Penetration Type Universal
in accordance with DIN EN 1401, for installation in waterproof concrete walls, for connection to KG/HT pipes on both sides (Uni B) or for pipes to be pushed through (Uni D), with water pressure tight surrounding KRASO 4 Seal. The markings are for a simple shortening on site to standard wall thicknesses
| DafStB waterproof concrete guidline: Stress class 1 + 2The proven wall penetration made of solid wall material + With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).+ Also available as KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.+ Including two KRASO Covers as installation aid.+ KRASO Product Innovation: Type B as thermally insulated wall penetration!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Wall Penetration Type B - KG 2000
in accordance with DIN EN 14758, for installation in waterproof concrete walls for connection to KG 2000 pipes on both sides, with water pressure tight surrounding, thermally welded KRASO 4 Seal, formed plug-in sleeves on both sides and 2 KRASO Covers as installation aid | DafStB waterproof concrete guidline: Stress class 1 + 2
The proven wall penetration made of solid wall material + With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).+ KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.+ Including two KRASO Covers as installation aid.+ KRASO Product Innovation: Type B as thermally insulated wall penetration!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Wall Penetration Type B
in accordance with DIN EN 1401, for installation in waterproof concrete walls for connection to KG/HT pipes on both sides, with water pressure tight surrounding KRASO 4 Seal, formed plug-in sleeves on both sides and 2 KRASO Covers as installation aid
| DafStB waterproof concrete guidline: Stress class 1 + 2
The proven wall penetration made of solid wall material + With water pressure tight surrounding KRASO 4 Seal - MPA-tested up to 10 bar!+ Radon tight: prevents from a harmful to health concentration of the radioactive noble gas! + Made of dimensionally and pressure stable solid wall material with low abrasion! Easy installation at low temperatures.
+ Pipe and pipe material in accordance with DIN EN 1401 (KG) or DIN EN 14758 (KG 2000).+ Also available as KG 2000: made of polypropylene (PP), mineral-filled, smooth walls, long-lasting.+ Formed plug-in sleeve on both sides for connection to KG/HT pipes.+ Including two KRASO Covers as installation aid.+ KRASO Product Innovation: Type B as thermally insulated wall penetration!
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Slip-on Sleeve - KG 2000
according DIN EN 14758, for installation in waterproof concrete walls for KG 2000 lines to be pushed through, with water pressure tight surrounding, thermally welded KRASO 4 Seal
| DafStB waterproof concrete guidline: Stress class 1 + 2
Pipe Penetrations with KRASO 4 Seal
+ The surrounding KRASO 4 Seal is joined to the pipe penetration force-fit this prevents creep or slippage. Due to the special geometry our KRASO 4 Seal produces a grip with the concrete.
+ Altogether this results in a water pressure tightness up to 10 bar - MPA-tested! The KRASO 4 Seal also protects against the naturally occuring nobel gas radon and by this prevents a concentration of the radioactive gas in indoor spaces.
+ DafStB waterproof concrete guidline: Stress class 1 + 2
KRASO Slip-on Sleeve
according DIN EN 1401, for installation in waterproof concrete walls for KG/HT pipes to be pushed through, with water pressure tight surrounding KRASO 4 Seal | DafStB waterproof concrete guidline: Stress class 1 + 2Pipe Penetrations with KRASO 4 Seal
+ The surrounding KRASO 4 Seal is joined to the pipe penetration force-fit this prevents creep or slippage. Due to the special geometry our KRASO 4 Seal produces a grip with the concrete.
+ Altogether this results in a water pressure tightness up to 10 bar - MPA-tested! The KRASO 4 Seal also protects against the naturally occuring nobel gas radon and by this prevents a concentration of the radioactive gas in indoor spaces.
+ All pipe penetrations are also available as KG 2000 with thermally welded KRASO 4 Seal.
+ DafStB waterproof concrete guidline: Stress class 1 + 2
